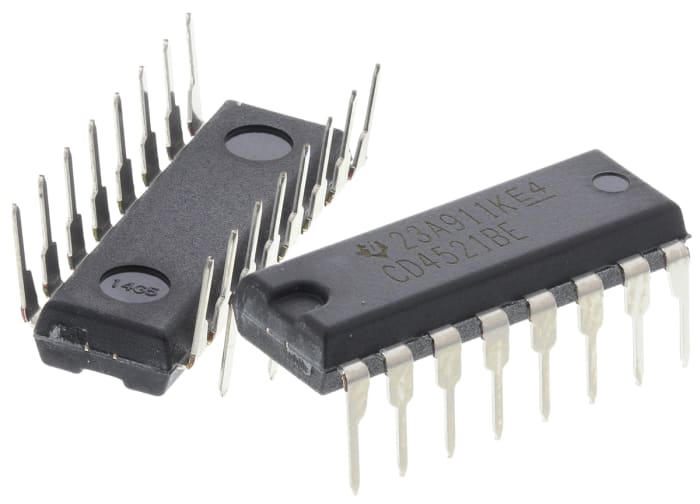

CD4521BE The Texas Instruments CD4521BE is a 1-channel frequency divider IC from the CD4000 logic family. It features a PDIP package and operates over a wide temperature range.
Mfr Part #:

CD4521BE

Available from 1 distributors
Mfr Name: HAR
HAR
The Texas Instruments CD4521BE is a 1-channel frequency divider IC from the CD4000 logic family. It features a PDIP package and operates over a wide temperature range.
✓ Total Stock: 16 pcs
$ Price Range: $0.30

CD4521BE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CD4521BE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
View Similar Products (0)

CD4521BE Description

Short technical summary and product information.

The Texas Instruments CD4521BE is a versatile frequency divider integrated circuit belonging to the CD4000 CMOS logic family. This component is designed for 1-channel frequency division applications.



Key electrical specifications include a wide operating supply voltage range from 3V to 18V. The device is built to withstand harsh environments, with a broad operating temperature range of -55°C to 125°C.



Mechanically, the CD4521BE is housed in a 16-pin PDIP package, suitable for through-hole mounting. Its dimensions are 19.69mm in length and 4.57mm in height. The series designation is CD4521B.



This frequency divider is a reliable choice for various electronic designs requiring precise frequency manipulation within demanding operational conditions.

CD4521BE Quick Information

Product Type: Frequency Divider
Series: CD4521B
Canonical Name: Texas Instruments CD4521BE Frequency Divider
Subcategory: Frequency Multipliers & Dividers

CD4521BE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CD4521BE Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

CD4521BE Features

  • 1-channel frequency divider IC.
  • CD4000 CMOS logic family.
  • Wide 3V to 18V supply voltage.
  • Extended -55°C to 125°C temperature range.
  • 16-pin PDIP through-hole package.

CD4521BE Applications

  • Digital signal processing circuits.
  • Timing and clock generation.
  • Frequency synthesis applications.
  • Control system timing.

CD4521BE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the product type of the CD4521BE?

The product type is Frequency Divider.

What is the logic family of the CD4521BE?

The logic family is CD4000.

What is the minimum and maximum operating supply voltage for the CD4521BE?

The minimum supply voltage is 3V and the maximum is 18V.

What is the operating temperature range for the CD4521BE?

The operating temperature range is -55°C to 125°C.

What package type is the CD4521BE?

The package type is PDIP.

How is the CD4521BE mounted?

The CD4521BE is mounted using the Through Hole method.

What is the RoHS status of the CD4521BE?

The RoHS status is RoHS3 Compliant.
