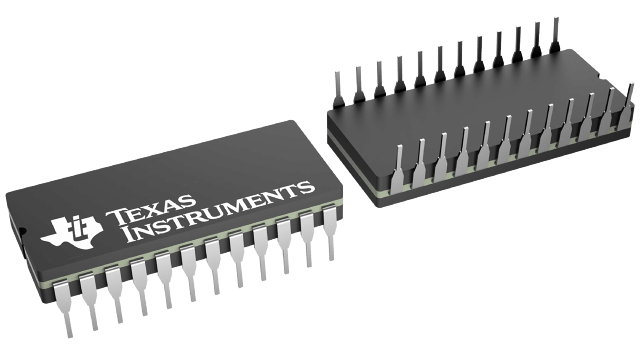

The CD4514BF3A from Texas Instruments is a high-performance CMOS 4-bit strobed latch and 4-to-16-line decoder IC. This device is designed for applications requiring digital multiplexing, address decoding, hexadecimal/BCD decoding, program-counter decoding, and control decoding.
Key electrical characteristics include a wide operating voltage range from 3V to 18V and an operating temperature range of -55°C to 125°C. The device features a 1 x 4:16 circuit configuration with independent circuits, supporting dual supply voltage sources. It meets JEDEC Tentative Standard No. 13B specifications and offers standardized, symmetrical output characteristics.
The CD4514BF3A is supplied in a 24-lead ceramic dual-in-line package (CDIP) suitable for through-hole mounting. The latches within the device hold the last input data presented before the strobe transition from 1 to 0. An inhibit control feature allows all outputs to be placed at a logic low, regardless of the data or strobe input states.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.64 | $22.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3V to 18V.
-55°C to 125°C.
24-CDIP (0.600", 15.24mm) with through-hole mounting.
1 x 4:16, a single 4-to-16 line decoder/demultiplexer.
3000 µA.
1V at VDD=5V, 2V at VDD=10V, and 2.5V at VDD=15V.
1 µA at 18V.
