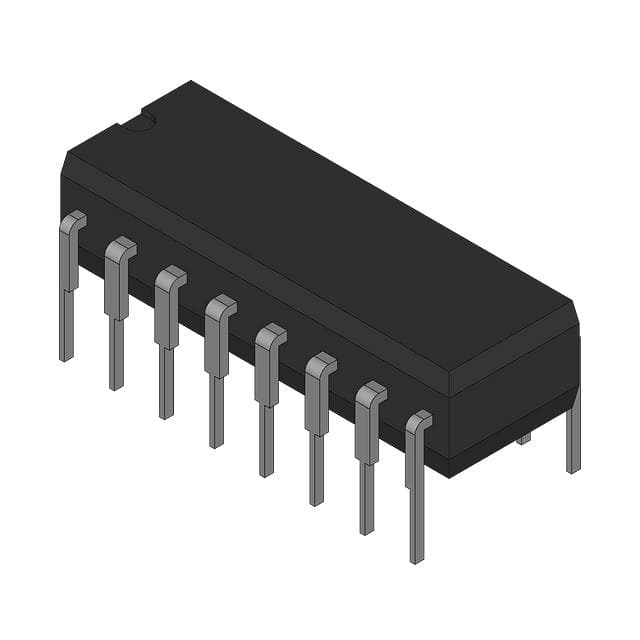

CD4503BF The Texas Instruments CD4503BF is a non-inverting buffer with a wide operating voltage range of 3V to 18V. It features 3-state outputs and operates across a temperature range of -55°C to 125°C.
Mfr Part #:

CD4503BF

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CD4503BF is a non-inverting buffer with a wide operating voltage range of 3V to 18V. It features 3-state outputs and operates across a temperature range of -55°C to 125°C.
✓ Total Stock: 10 pcs
$ Price Range: $1.20

CD4503BF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CD4503BF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Logic Type
Mounting Type
Number of Bits per Element
Number of Elements
Operating Temperature
Output Type
Supplier Device Package
Voltage
Voltage Supply
View Similar Products (0)

CD4503BF Description

Short technical summary and product information.

The CD4503BF from Texas Instruments is a MILITARY 6-channel, 3V to 18V buffered transceiver. This non-inverting buffer is designed for robust performance in demanding environments, operating reliably from -55°C to 125°C.



Key electrical characteristics include a wide supply voltage range of 3V to 18V, making it compatible with various logic systems. It offers 3-state outputs and supports multiple bits per element, with 2 and 4 bits specified. The device can handle output currents of 14.1mA and 23mA.



Packaged in a 16-CDIP through-hole configuration, the CD4503BF is suitable for applications requiring stable buffering and signal integrity. Its design emphasizes high noise immunity and latch-up immunity, making it a dependable choice for industrial and military applications.



This component is part of the 4000B series, known for its reliability and wide operating parameters. The through-hole mounting type simplifies integration into existing circuit designs.

CD4503BF Quick Information

Product Type: Buffer, Driver, Receiver, Transceiver
Series: 4000B
Canonical Name: CD4503BF Buffer, Non-Inverting
Subcategory: Buffer, Non-Inverting

CD4503BF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CD4503BF Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

CD4503BF Features

  • 6-channel non-inverting buffer.
  • Wide 3V to 18V supply voltage.
  • Operates from -55°C to 125°C.
  • Features 3-state outputs.
  • Packaged in 16-CDIP for through-hole mounting.

CD4503BF Applications

  • Ideal for logic signal buffering.
  • Suitable for wide voltage systems.
  • Used in industrial control systems.
  • Reliable in harsh temperature environments.

CD4503BF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the CD4503BF?

3V to 18V.

What is the package type of the CD4503BF?

16-CDIP (0.300", 7.62mm) through-hole package.

What is the operating temperature range?

-55°C to 125°C (TA).

How many elements does the CD4503BF have?

2 elements.

How many bits per element does the CD4503BF support?

2 or 4 bits per element.

What logic function does the CD4503BF perform?

Buffer, non-inverting.

What is the output type of the CD4503BF?

3-State.
