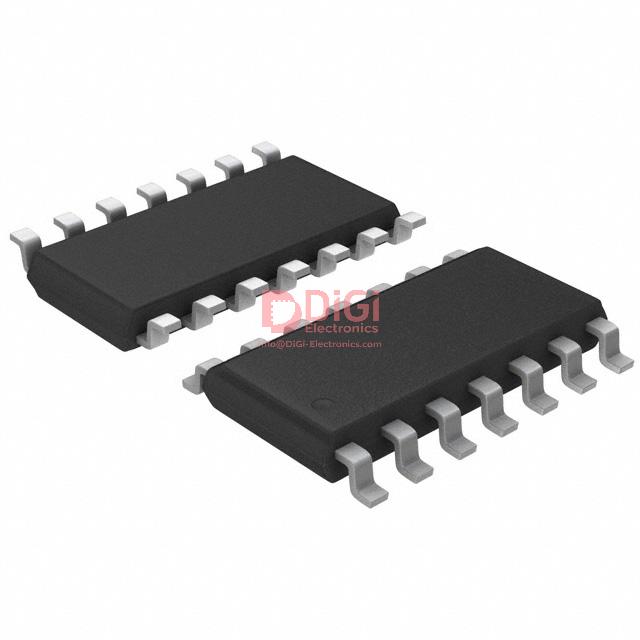

CD4093 The Texas Instruments CD4093BM96G4 is a 4-channel NAND Gate IC featuring Schmitt Trigger inputs. It operates with a supply voltage range of 3V to 18V and is housed in a 14-SOIC package.
Mfr Part #:

CD4093

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CD4093BM96G4 is a 4-channel NAND Gate IC featuring Schmitt Trigger inputs. It operates with a supply voltage range of 3V to 18V and is housed in a 14-SOIC package.
✓ Total Stock: 1,130,000 pcs
$ Price Range: $0.22

CD4093 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
1,130,000 pcs
On Request
1130000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CD4093 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current - Quiescent (Max)
Failure Rate
Features
Logic Type
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
SVHC Present
Supplier Device Package
Voltage Supply
View Similar Products (0)

CD4093 Description

Short technical summary and product information.

The CD4093BM96G4 from Texas Instruments is a versatile integrated circuit belonging to the 4000B series. This device functions as a 4-channel NAND gate, incorporating Schmitt Trigger inputs for enhanced noise immunity and signal conditioning.



Key electrical specifications include a wide operating supply voltage range from 3V to 18V, a low quiescent current of 4 µA, and output drive capabilities of 3.4mA for both high and low states. The input logic levels are defined with a low threshold between 0.9V and 4V, and a high threshold between 3.6V and 10.8V. Propagation delay is specified at a maximum of 130ns at 15V with a 50pF load.



Designed for surface mounting, the CD4093BM96G4 comes in a standard 14-SOIC package with dimensions of 0.154 inches (3.90mm) width. The operating temperature range spans from -55°C to 125°C, making it suitable for various environmental conditions. This component is ideal for digital logic applications requiring reliable signal processing and noise suppression.

CD4093 Quick Information

Product Type: NAND Gate IC
Series: 4000B
Canonical Name: CD4093BM96G4 4-Channel Schmitt Trigger NAND Gate IC
Subcategory: NAND Gate

CD4093 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CD4093 Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

CD4093 Features

  • Four-channel NAND gate logic IC.
  • Schmitt Trigger inputs for noise immunity.
  • Wide 3V to 18V supply voltage range.
  • Surface mount 14-SOIC package.
  • Operates from -55°C to 125°C.

CD4093 Applications

  • Digital logic circuit design.
  • Signal conditioning applications.
  • Noise-sensitive environments.
  • Embedded system interfaces.

CD4093 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the CD4093?

3V to 18V.

What is the operating temperature range of the CD4093?

-55°C to 125°C.

What package is the CD4093 available in?

14-SOIC (0.154", 3.90mm Width).

How many gates are in the CD4093?

4 NAND gates.

Does the CD4093 have Schmitt trigger inputs?

Yes, it features Schmitt trigger inputs.

What is the maximum propagation delay of the CD4093?

130 ns at 15V supply and 50 pF load.

What is the quiescent current of the CD4093?

4 µA.
