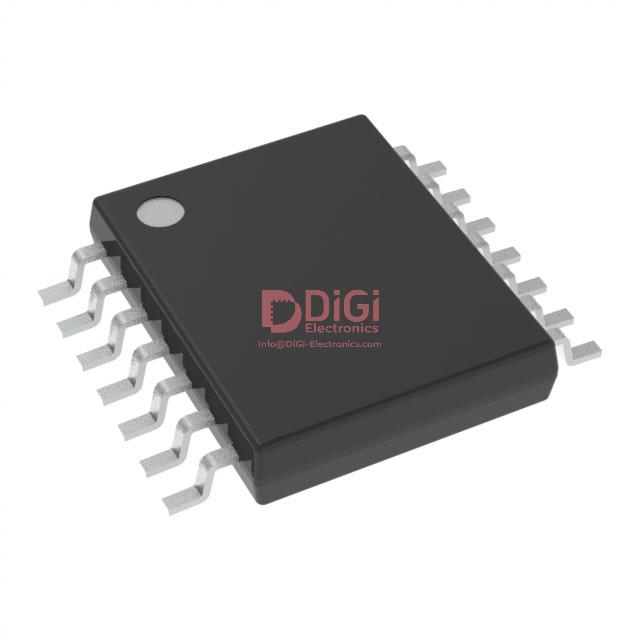

CD4075 The Texas Instruments CD4075BPW is a 3-channel, 3-input OR Gate IC. It features a wide operating voltage range and is available in a 14-TSSOP package.
Mfr Part #:

CD4075

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CD4075BPW is a 3-channel, 3-input OR Gate IC. It features a wide operating voltage range and is available in a 14-TSSOP package.
✓ Total Stock: 452,000 pcs
$ Price Range: $0.22

CD4075 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
452,000 pcs
On Request
452000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CD4075 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current - Quiescent (Max)
Logic Type
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Supplier Device Package
Voltage Supply
View Similar Products (0)

CD4075 Description

Short technical summary and product information.

The Texas Instruments CD4075BPW is a high-performance 3-channel, 3-input OR Gate integrated circuit. Designed for digital logic applications, this component operates across a broad voltage supply range from 3V to 18V. It offers a maximum propagation delay of 90ns at 15V with a 50pF load capacitance, ensuring efficient signal processing.



The CD4075BPW is housed in a compact 14-TSSOP surface-mount package, making it suitable for space-constrained designs. Its operating temperature range is -55°C to 125°C, providing reliability in various environmental conditions. With a quiescent current of only 1µA, it is an energy-efficient choice for many electronic systems.



This OR Gate IC is ideal for implementing logical OR functions in digital circuits, control systems, and signal processing applications. Its robust design and wide operating parameters make it a versatile component for both industrial and commercial electronic projects.

CD4075 Quick Information

Product Type: OR Gate
Series: 4000B
Canonical Name: Texas Instruments CD4075BPW 3-Input 3-Channel OR Gate
Subcategory: OR Gate

CD4075 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CD4075 Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

CD4075 Features

  • It functions as a 3-Input OR Gate.
  • The device contains three independent circuits.
  • It operates with a supply voltage of 3V to 18V.
  • Output current is rated at 3.4mA.
  • It is supplied in a 14-TSSOP package.

CD4075 Applications

  • Used in general purpose logic applications.
  • Suitable for digital signal processing.
  • Integrated into control systems.
  • Applied in various industrial electronics.
  • Utilized in automotive electronic designs.

CD4075 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the CD4075?

The CD4075 operates with a supply voltage ranging from 3V to 18V.

What is the package type for the CD4075?

The CD4075 is supplied in a 14-TSSOP package.

What is the operating temperature range of the CD4075?

The CD4075 can operate in temperatures ranging from -55°C to 125°C.

What is the logic type of the CD4075?

The CD4075 is an OR Gate.

How many circuits does the CD4075 have?

The CD4075 has 3 circuits.

What is the maximum propagation delay of the CD4075?

The maximum propagation delay is 90ns when tested at 15V, 50pF.

What is the mounting type for the CD4075?

The CD4075 is designed for Surface Mount applications.
