The CD4049UBE from RCA is a hex inverting buffer IC, part of the CMOS logic family. It is designed for applications requiring logic-level conversion, capable of handling input signals where the high level can exceed the VCC supply voltage. This device can drive two DTL or TTL loads when operating at 5V.
Key electrical specifications include a maximum supply voltage of 20V and a minimum of -0.5V. It operates with a typical quiescent current of 40 nA and a typical operating supply current of 30 uA. The buffer offers a high level output current of -5.2 mA and a low level output current of 25 mA. The operating temperature range spans from -55°C to +125°C.

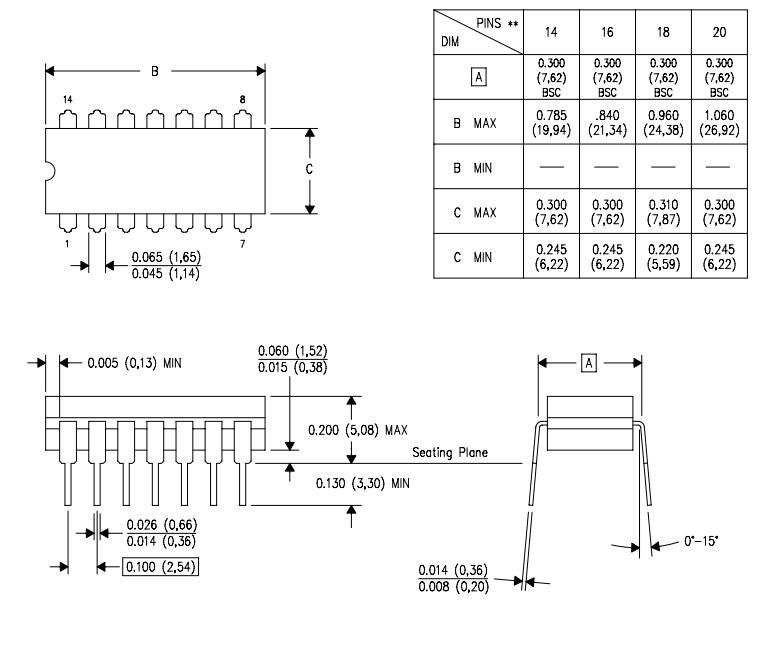

Packaged in a 16-pin PDIP through-hole configuration, the CD4049UBE has a body size of 6.35 mm x 19.30 mm. Its inverting nature and high sink current capability make it suitable for CMOS to DTL or TTL conversion, as well as acting as current sink or source drivers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum supply voltage for the CD4049UBE is 20V.
The CD4049UBE operates from -55°C to +125°C.
The CD4049UBE is supplied in a PDIP-16 package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The typical quiescent current is 40 nA.
