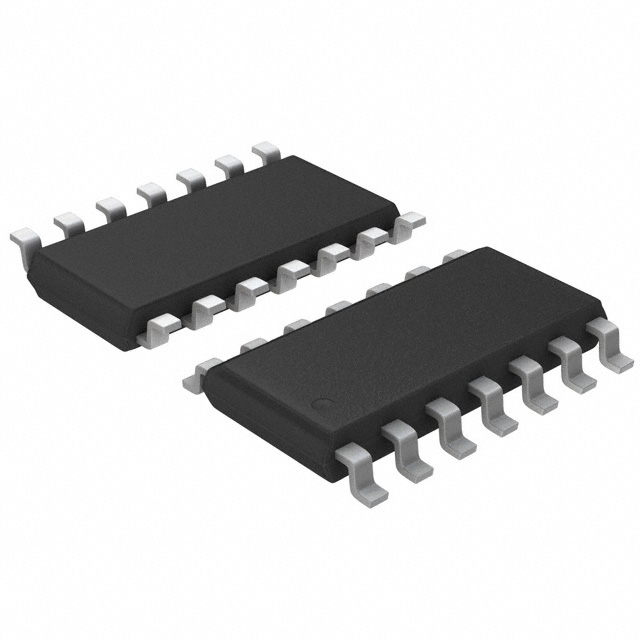

CD4013BNSR The Texas Instruments CD4013BNSR is a CMOS Dual D-Type Flip-Flop. It operates from 3V to 18V and is housed in a 14-SOIC package.
Mfr Part #:

CD4013BNSR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CD4013BNSR is a CMOS Dual D-Type Flip-Flop. It operates from 3V to 18V and is housed in a 14-SOIC package.
✓ Total Stock: 602,800 pcs
$ Price Range: $0.24

CD4013BNSR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
602,667 pcs
On Request
602667 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
133 pcs
On Request
133 pcs On Request 1 On Request On Request 0940+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CD4013BNSR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Current
Function
Input Capacitance
Lead Style
Max Propagation Delay @ V, Max CL
Mounting Type
Number of Bits per Element
Number of Elements
Operating Temperature
Output Type
SVHC Present
Supplier Device Package
Supplier Package
Trigger Type
Type
Voltage
View Similar Products (0)

CD4013BNSR Description

Short technical summary and product information.

The CD4013BNSR from Texas Instruments is a dual D-type flip-flop integrated circuit. Each flip-flop features independent data, set, reset, and clock inputs, along with Q and Q outputs. This device is suitable for shift register, counter, and toggle applications.



Key electrical specifications include an operating voltage range of 3V to 18V and a quiescent current of 4 µA. It offers a positive edge trigger type with a maximum propagation delay of 90ns at 15V and 50pF. The flip-flop operates at medium speeds, typically 16 MHz, with a maximum input current of 1 µA at 18V.



The CD4013BNSR is designed for surface mount installation and comes in a 14-SOIC package. It operates within a temperature range of -55°C to 125°C. The device is RoHS3 compliant and has an MSL rating of 1.



This component can be used in various digital logic applications requiring data storage and manipulation. Its dual flip-flop configuration allows for independent operation or cascading for more complex functions.

CD4013BNSR Quick Information

Product Type: Flip Flop
Series: CD4013B
Canonical Name: Texas Instruments CD4013B Dual D-Type Flip-Flop
Subcategory: D-Type Flip-Flop

CD4013BNSR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CD4013BNSR Estimated Pricing

Qty Low High
1+ $0.24 $0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

CD4013BNSR Features

  • Dual D-Type Flip-Flop configuration.
  • Wide 3V to 18V operating voltage.
  • Surface mount 14-SOIC package.
  • Operates from -55°C to 125°C.
  • Suitable for shift register applications.

CD4013BNSR Applications

  • Used in data latch and storage circuits.
  • Suitable for frequency division applications.
  • Ideal for control logic sequencing.
  • Can be used for shift register implementations.
  • Applicable in counter and timer circuits.

CD4013BNSR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the CD4013BNSR?

3V to 18V.

What is the package type of the CD4013BNSR?

14-SOIC (0.209", 5.30mm Width).

What is the operating temperature range of the CD4013BNSR?

-55°C to 125°C.

How many flip-flops are in the CD4013BNSR?

It contains two D-type flip-flops, each with one bit.

What is the trigger type of the CD4013BNSR?

Positive Edge.

What is the output type of the CD4013BNSR?

Complementary.

What are the noise margin values for the CD4013BNSR at different supply voltages?

1V at VDD=5V, 2V at VDD=10V, 2.5V at VDD=15V.
