| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
102 pcs
|
102 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Logic Type | |
| Mounting Style | |
| Number of Circuits | |
| Quiescent Current |
The CD40106BE from RCA is a versatile integrated circuit featuring six independent Schmitt-Trigger inverters. Each circuit functions as an inverter with Schmitt-Trigger input, meaning it switches at different points for positive- and negative-going signals, providing hysteresis.
This device is designed for a wide operating voltage range, from a minimum of 3V to a maximum of 18V. It operates reliably within an ambient temperature range of -55°C to +125°C. The logic type is CMOS, belonging to the CD4000 logic family.
Key electrical characteristics include a typical hysteresis voltage of 0.9V at 5V VDD, 2.3V at 10V VDD, and 3.5V at 15V VDD. It also features a maximum input current of 1µA at 18V and a typical quiescent current of 100nA at 18V and 25°C.

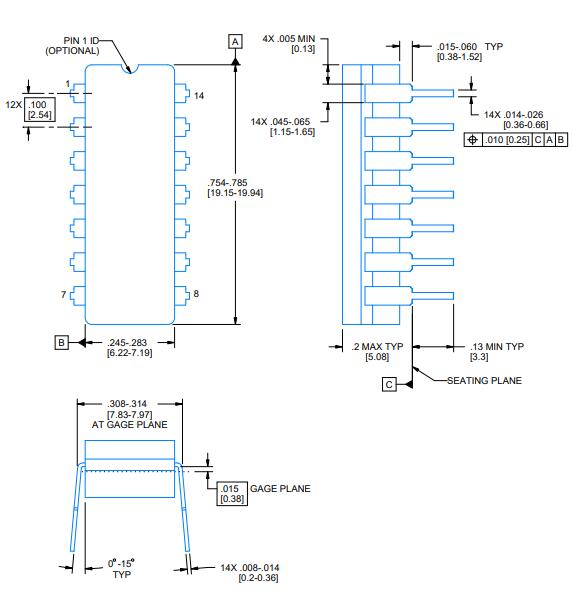

The CD40106BE is suitable for applications such as wave and pulse shapers, high-noise-environment systems, monostable multivibrators, and astable multivibrators. It is available in a through-hole mounting package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CD40106BE operates with a supply voltage range from 3V to 18V.
The CD40106BE is rated for ambient temperature operation from -55°C to +125°C.
The typical hysteresis voltage at VDD = 5V for the CD40106BE is 0.9V.
The maximum input current for the CD40106BE is 1µA at 18V over the full package temperature range.
The CD40106BE contains six independent circuits.
