| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,500 pcs
|
7500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current - Quiescent (Max) | |
| Logic Type | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Operating Voltage | |
| Output Current | |
| Tape & Reel |

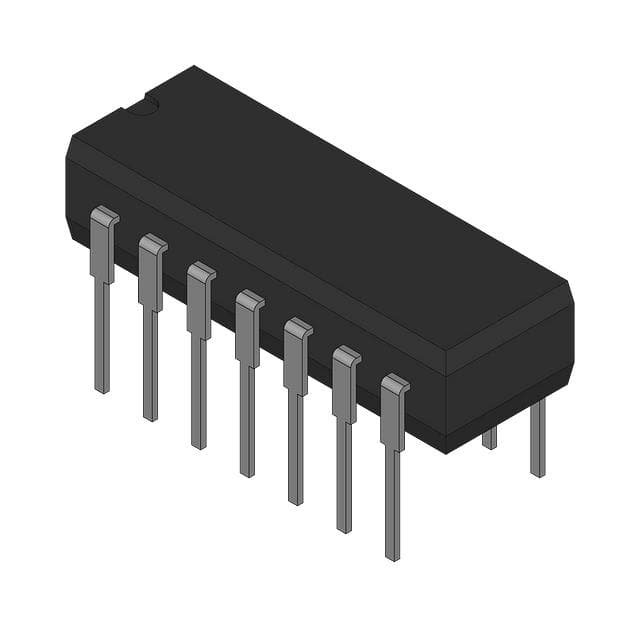

The Harris Corporation CD4001BD is a CMOS integrated circuit featuring four independent 2-input NOR gates. This logic gate operates within a wide supply voltage range of 3V to 18V, making it suitable for various applications. The device is designed for through-hole mounting and comes in a 14-CDIP package.
Key electrical characteristics include a maximum propagation delay of 250ns at 5V and 50pF, a quiescent current of 5 µA, and output currents of 3.4mA for both high and low states. The input logic levels are defined between 1.5V to 4V for low and 3.5V to 11V for high.
With an operating temperature range from -55°C to 125°C, the CD4001BD is built for demanding environments. The base product number is CD4001. This component is classified as a NOR Gate within the Logic Gates category.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the CD4001BD is 3V to 18V.
The CD4001BD operates within a temperature range of -55°C to 125°C.
The CD4001BD is a NOR Gate.
The CD4001BD is available in a 14-CDIP package.
The CD4001BD is designed for through-hole mounting.
