| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Dielectric Material | |
| Features | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Tolerance | |
| Voltage | |
| Width |

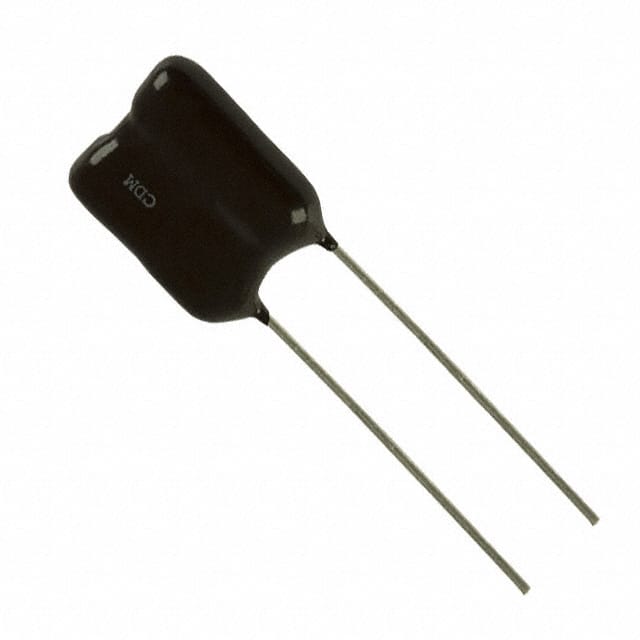

The CD30FD512JO3 is a standard dipped silvered mica capacitor from Cornell Dubilier Electronics (CDE), part of the CD30 series. It offers a capacitance value of 5100 pF with a tolerance of ±5% and a rated voltage of 500 V. Mica dielectric provides excellent stability and low loss over a wide temperature range, making this capacitor suitable for timing and close-tolerance applications.
This capacitor is housed in a radial through-hole package with a lead spacing of 11.1 mm and dimensions of 19.81 mm length, 7.1 mm width, and 21.8 mm height. It operates reliably from -55°C to 125°C. The series features a minimum dV/dt pulse capability of 100,000 V/µs and a dielectric strength test of 200% of rated voltage, ensuring robust performance in pulse and high-frequency circuits.
Typical applications include RF circuits, timing circuits, snubber networks, and other designs requiring stable capacitance under varying environmental conditions. The epoxy case and tin-plated copper clad steel terminals provide durability and RoHS compliance.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.20 | $19.20 |
| 10+ | $11.72 | $11.72 |
| 100+ | $11.72 | $11.72 |
| 1,000+ | $19.20 | $19.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5100 pF with ±5% tolerance.
500 V DC.
-55°C to 125°C.
Radial through-hole package with lead spacing of 11.1 mm.
Mica.
Yes, it is listed as RoHS3 Compliant.
