| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
395 pcs
|
395 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Forward Rectified Current | |
| Current | |
| Diode Type | |
| Lead Style | |
| Maximum DC Blocking Voltage | |
| Maximum Instantaneous Forward Voltage @ 1 A | |
| Maximum RMS Voltage | |
| Maximum Repetitive Peak Reverse Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current | |
| Reverse Current (Maximum @ TJ = 150 °C) | |
| Reverse Current (Maximum @ TJ=25 °C) | |
| Storage Temperature | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Typical Junction Capacitance | |
| Typical Thermal Resistance | |
| Voltage |

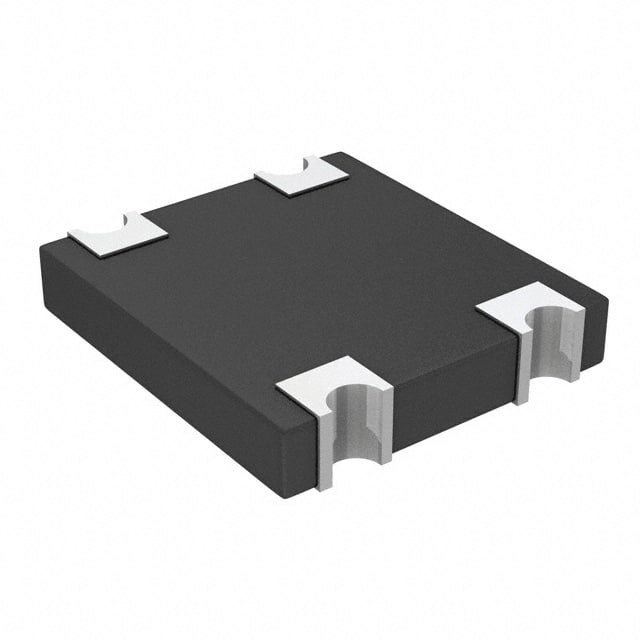

The Bourns CD2320-B11000 is a single phase Schottky bridge rectifier diode designed for low power loss and high efficiency. It offers a maximum repetitive peak reverse voltage of 1000V and an average forward rectified current of 0.1A at 55°C ambient. The device features a low forward voltage drop of 1V at 1A and a peak forward surge current rating of 30A (8.3ms). It has a typical junction capacitance of 52pF. The rectifier is housed in a compact surface mount 2320 chip package with concave terminals, suitable for space-constrained PCB designs. It operates over a temperature range of -55°C to 175°C. The component is RoHS compliant and designed for use in power supply, lighting, and portable electronics applications.
The maximum repetitive peak reverse voltage is 1000V, and the maximum DC blocking voltage is also 1000V.
The average forward rectified current is 0.1A at 55°C ambient.
The maximum instantaneous forward voltage at 1A is 1V.
The device is available in a surface mount 2320 chip package with concave terminals.
The operating junction temperature range is -55°C to 175°C.
