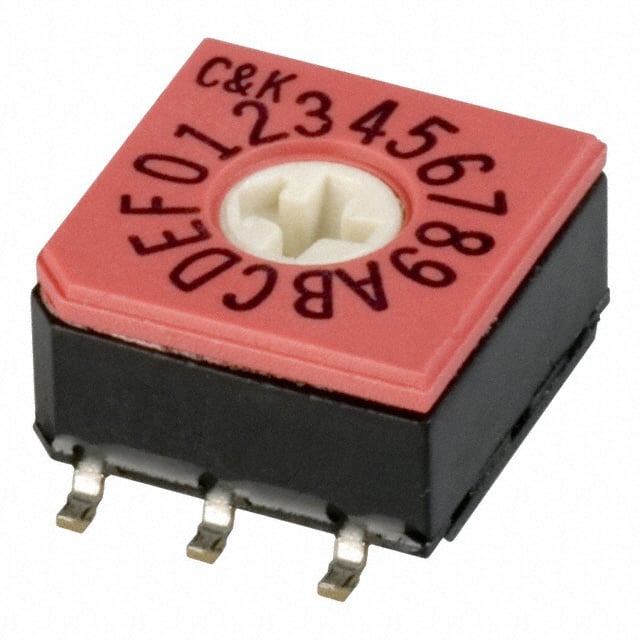

CD16RM0SB The C&K Components CD16RM0SB is a 16-position rotary DIP switch designed for address switching and data storage applications. It features a process-sealed construction and a compact size.
Mfr Part #:

CD16RM0SB

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components CD16RM0SB is a 16-position rotary DIP switch designed for address switching and data storage applications. It features a process-sealed construction and a compact size.
✓ Total Stock: 4 pcs
$ Price Range: $0.75

CD16RM0SB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CD16RM0SB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
Features
Height Above Board
Insulation Resistance
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

CD16RM0SB Description

Short technical summary and product information.

The C&K Components CD16RM0SB is part of the CD Series 8mm Coded Rotary DIP Switches, designed for applications requiring compact size and resistance to harsh environments. This switch is process sealed to withstand soldering and cleaning processes, making it suitable for demanding conditions.



Key electrical specifications include a contact rating of 0.4 VA max. at 20 V AC or DC, a contact resistance of 100 milliohms max. initial, and an insulation resistance of 100 megohms min. at 250 V AC. The switch offers 16 positions with a hexadecimal circuit type and features a gold contact finish over a copper alloy contact material.



Mechanically, the CD16RM0SB has a pitch of 2.54mm (0.100") and a height above board of 0.168" (4.27mm). The actuator type is rotary for tool operation, with flush and recessed actuator levels. It is designed for surface mounting with a gull wing termination style.



Environmental characteristics include an operating temperature range of -25°C to 85°C. The switch is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. The IP65 rating indicates protection against dust and water jets.

CD16RM0SB Quick Information

Product Type: Rotary DIP Switch
Series: CD Series
Canonical Name: C&K Components CD Series 16-Position Coded Rotary DIP Switch
Subcategory: Coded Rotary DIP Switch

CD16RM0SB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CD16RM0SB Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

CD16RM0SB Features

  • 16-position hexadecimal coded rotary DIP switch.
  • Process sealed for harsh environment resistance.
  • Compact 8mm size saves critical board space.
  • Surface mount with gull wing termination.
  • IP65 rated for dust and water protection.

CD16RM0SB Applications

  • Ideal for address switching applications.
  • Suitable for data storage devices.
  • Used in computer and peripheral systems.
  • Applicable in instrumentation designs.

CD16RM0SB FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the C&K CD16RM0SB rotary DIP switch have?

The CD16RM0SB has 16 positions.

What is the voltage rating for the CD16RM0SB switch?

The voltage rating is 20VAC/DC.

What is the operating temperature range for this rotary DIP switch?

The operating temperature range is -25°C to 85°C.

Is the C&K CD16RM0SB RoHS compliant?

Yes, the CD16RM0SB is RoHS3 Compliant.

What is the IP rating of the CD16RM0SB switch?

The CD16RM0SB has an IP65 rating.
