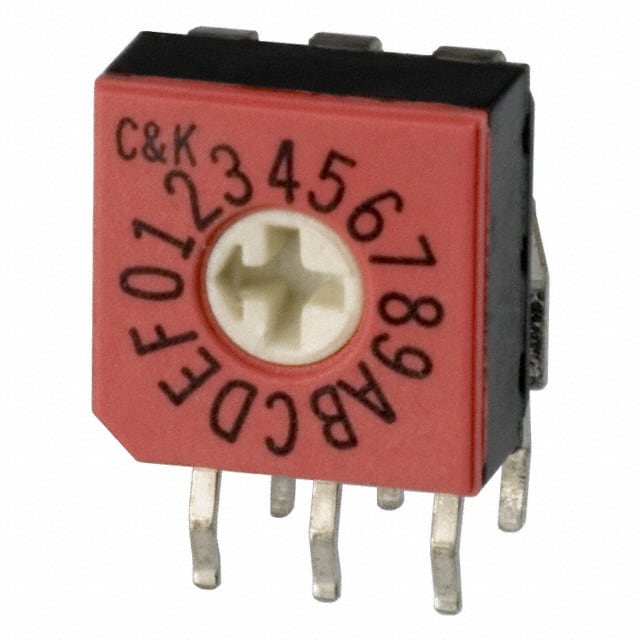

CD16RM0AK The C&K CD16RM0AK is a Hexadecimal Rotary DIP Switch designed for address switching applications. It features 16 positions and a process-sealed construction.
Mfr Part #:

CD16RM0AK

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K CD16RM0AK is a Hexadecimal Rotary DIP Switch designed for address switching applications. It features 16 positions and a process-sealed construction.
✓ Total Stock: 31 pcs
$ Price Range: $0.75

CD16RM0AK Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
31 pcs
On Request
31 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CD16RM0AK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
Features
Height Above Board
Insulation Resistance
Mounting Type
Number of Positions
Operating Temperature
Pitch
Storage Temperature
Termination Style
Voltage Rating
Washable
View Similar Products (0)

CD16RM0AK Description

Short technical summary and product information.

The C&K CD16RM0AK is a 16-position Hexadecimal Rotary DIP Switch from the CD Series, designed for applications requiring precise address switching. It offers a contact rating of 0.4 VAmax. @ 20 V AC or V DC max. and a contact resistance of 50 milliohms initial.



This switch is process-sealed, making it resistant to soldering and cleaning processes. It features a through-hole, right-angle mounting type with PC pin terminations and a pitch of 2.54mm (0.100"). The operating temperature range is -25°C to 85°C, and it has a mechanical and electrical life of 20,000 actuations.



Typical applications include address switching, data storage devices, computer peripherals, and instrumentation. The switch is constructed with a glass-filled nylon base and cover, LCP actuator, and copper alloy contacts with gold plating.

CD16RM0AK Quick Information

Product Type: Rotary DIP Switch
Series: CD Series
Canonical Name: C&K CD Series Hexadecimal Rotary DIP Switch
Subcategory: DIP Switch

CD16RM0AK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CD16RM0AK Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

CD16RM0AK Features

  • Process sealed for soldering and cleaning.
  • 16 positions with Hexadecimal circuit.
  • Gold contact finish for reliability.
  • Through Hole, Right Angle mounting.
  • Operates from -25°C to 85°C.

CD16RM0AK Applications

  • Ideal for address switching.
  • Suitable for data storage devices.
  • Used in computer peripherals.
  • Applicable in instrumentation.

CD16RM0AK FAQs

6 frequently asked questions generated from this part’s specifications.
What is the contact rating for the C&K CD16RM0AK switch?

The contact rating is 0.4 VAmax. @ 20 V AC or V DC max.

What is the mechanical and electrical life of the CD16RM0AK switch?

The mechanical and electrical life is 20,000 actuations.

What is the operating temperature range for this rotary DIP switch?

The operating temperature range is -25°C to 85°C.

What type of circuit does the C&K CD16RM0AK switch use?

The switch uses a Hexadecimal circuit.

How many positions does the CD16RM0AK switch have?

The switch has 16 positions.

What is the mounting type and termination style of the CD16RM0AK?

It features Through Hole, Right Angle mounting with PC Pin termination style.
