CD123D-B140LR Schottky barrier diode from Bourns, rated for 40V reverse voltage and 1A forward current. Features low forward voltage of 0.37V typical at 1A.
Mfr Part #:

CD123D-B140LR

Available from 1 distributors
Mfr Name: Bourns
Bourns
Schottky barrier diode from Bourns, rated for 40V reverse voltage and 1A forward current. Features low forward voltage of 0.37V typical at 1A.
✓ Total Stock: 1,175 pcs

CD123D-B140LR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,175 pcs
On Request
1175 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CD123D-B140LR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Vr, F
Current
Halogen Free
Mounting Type
Operating Temperature
Operating Temperature Range
Package / Case
Prop 65
Speed
Supplier Device Package
Technology
Termination Style
Voltage
View Similar Products (0)

CD123D-B140LR Description

Short technical summary and product information.

The Bourns CD123D-B140LR is a Schottky barrier diode designed for high-efficiency rectification and switching applications. It offers a maximum reverse voltage of 40V and an average forward current of 1A at 55°C ambient temperature. The diode features a low forward voltage of 0.37V typical at 1A, reducing power dissipation and improving system efficiency. With fast recovery time (≤500ns) and low junction capacitance of 115pF at 4V, it is suitable for high-frequency circuits.

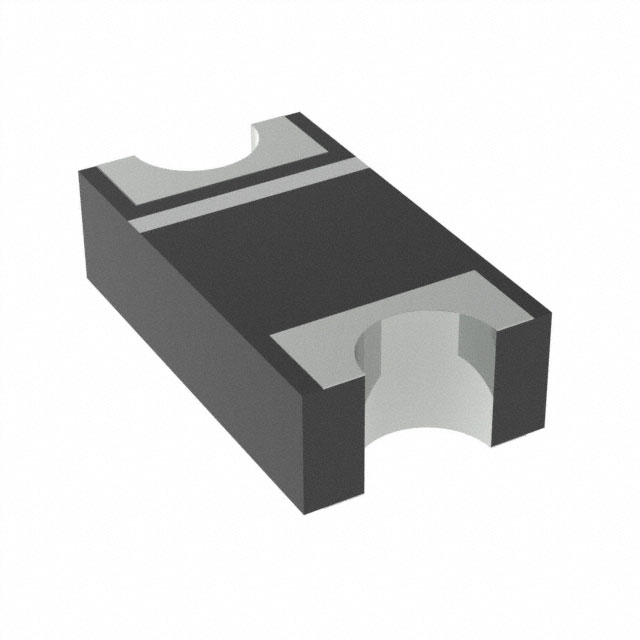

This diode is housed in a compact surface mount 123D chip package with concave terminals, compatible with SOD-123 footprint. It operates over a temperature range of -55°C to 125°C and can withstand non-repetitive surge currents up to 20A. The component is RoHS3 compliant and halogen free per Bourns definition, making it suitable for environmentally conscious designs.



Typical applications include portable communications, computing, and video equipment where space and power efficiency are critical. The low forward voltage and fast switching characteristics make it ideal for DC-DC converters, polarity protection, and freewheeling diodes in power management circuits.

CD123D-B140LR Quick Information

Product Type: Schottky Diode
Series: CD123D-B1xR
Canonical Name: Bourns CD123D-B140LR Schottky Barrier Diode
Subcategory: Schottky Rectifier

CD123D-B140LR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CD123D-B140LR Features

  • Low forward voltage of 0.37V at 1A.
  • Rated for 40V reverse voltage.
  • 1A average forward current capability.
  • Surface mount 123D chip package.
  • RoHS and Halogen Free compliant.

CD123D-B140LR Applications

  • Used in portable communication devices.
  • Suitable for high-frequency rectification.
  • Ideal for DC-DC converter circuits.
  • Power management in computing equipment.

CD123D-B140LR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage?

40V.

What is the maximum average forward current?

1A at TA=55°C.

What is the forward voltage drop?

0.37V typical at 1A forward current.

What is the reverse recovery time?

Fast recovery ≤500ns.

What is the package type?

Surface mount 123D chip with concave terminals.

What is the operating temperature range?

-55°C to 125°C.

Is this component RoHS compliant?

Yes, RoHS3 compliant.
