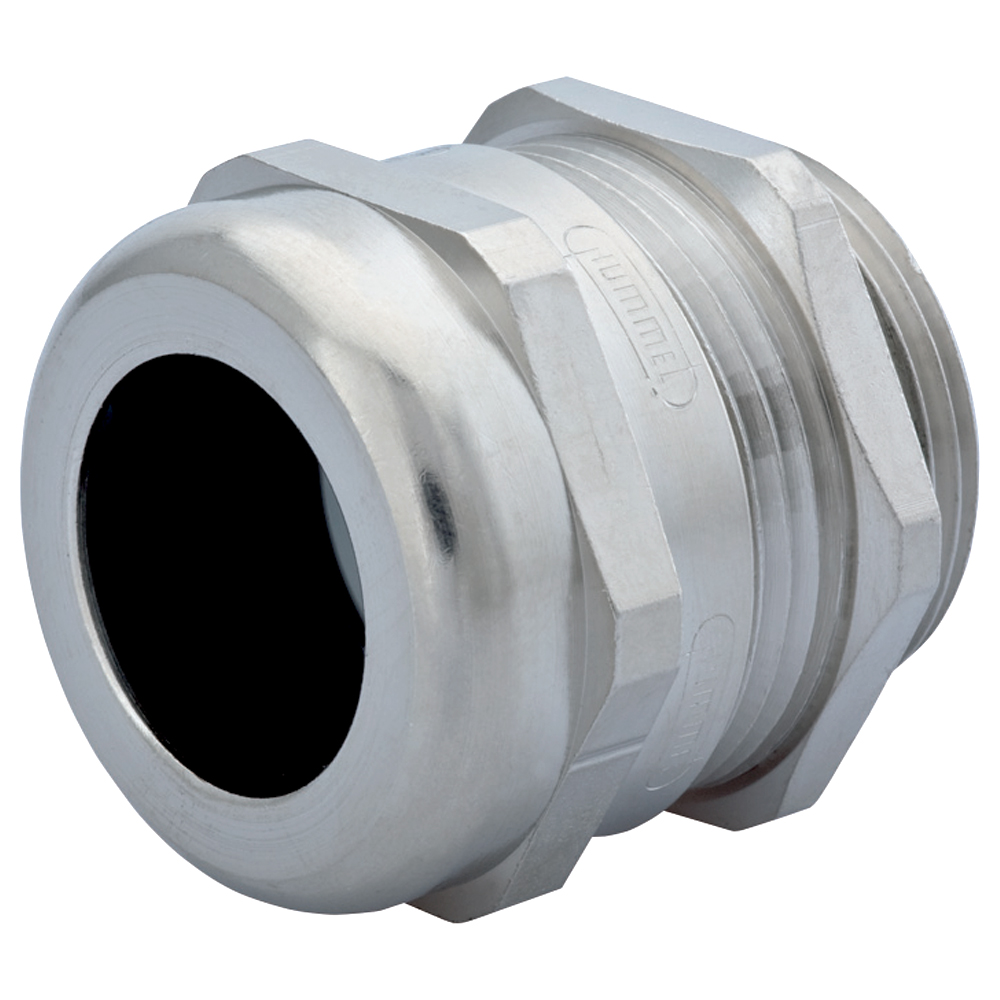

The Sealcon CD07AA-BE is a high-quality strain relief fitting constructed from durable Nickel Plated Brass, designed for EMI/RFI proof applications. It features a PG 7 / 1/4" NPT thread and is suitable for cable diameters ranging from 0.12" to 0.26" (3 to 6.5 mm).
This fitting operates reliably within a temperature range of -40°C to 100°C (-40°F to 212°F). It offers excellent protection, rated Nema 4x & 6 (IP68 / IP 69 K) and a pressure rating of 150 PSIG (10 BAR), making it suitable for submersible applications up to 300 ft. The material is non-corrosive and resistant to various oils, weak acids, and alkalis.
Key specifications include a body length of 0.75" (19 mm), a thread length of 0.2" (5 mm), and a wrench flat of 0.55" (14 mm). The form seal is made of Buna-N, with optional O-rings available. This fitting is also halogen and phosphorous-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.95 | $4.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CD07AA-BE supports a cable range of 0.12" to 0.26" (3 to 6.5 mm).
It uses PG 7 / 1/4" NPT threads.
The hole diameter is 0.49 inches (12.5 mm).
It provides Nema 4x & 6 (IP68 / IP69K) protection.
The operating temperature range is from -40°C to 100°C.
It is made from nickel-plated brass.
It supports a pressure rating of 150 PSIG (10 BAR).
