| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,000 pcs
|
30000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,839 pcs
|
6839 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,834 pcs
|
6834 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
385 pcs
|
385 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Forward Current (IF(AV)) | |
| Capacitance @ Vr, F | |
| Current | |
| Forward Voltage (Typical @ IF=100 mA) | |
| Forward Voltage (Typical @ IF=50 mA) | |
| Forward Voltage (Typical/Maximum @ IF = 200 mA) | |
| Halogen Free | |
| Junction Capacitance (Cj) | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Peak Forward Surge Current (Ifsm) | |
| Prop 65 | |
| Reverse Current (IRRM) | |
| Reverse Voltage (Vrrm) | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Termination Style | |
| Thermal Resistance Junction to Ambient (RθJA) | |
| Thermal Resistance Junction to Lead (RθJL) | |
| Voltage |

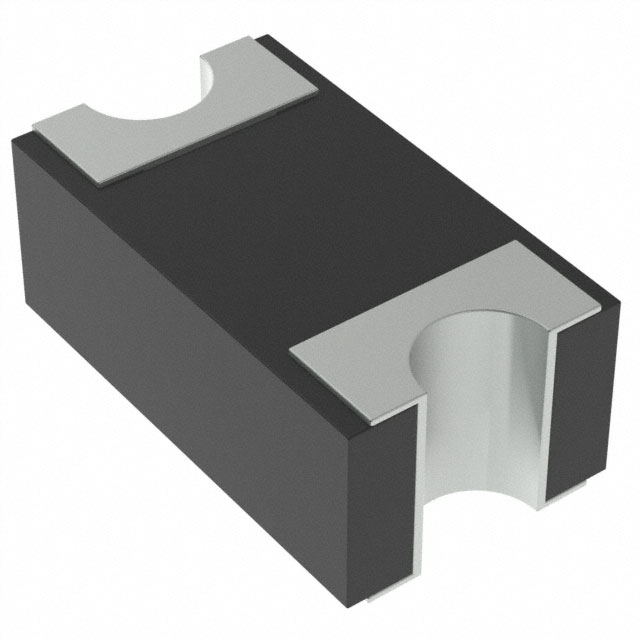

The Bourns CD0603-B0240R is a small-signal Schottky barrier diode designed for switching and rectification applications. It features a maximum repetitive peak reverse voltage of 40V and an average forward rectified current of 200mA at 55°C. The diode exhibits a low forward voltage of typically 0.43V at 200mA, with a maximum of 0.5V. Peak forward surge current is 2A for an 8.3ms half sine-wave.
Electrical characteristics include a typical reverse current of 0.5µA at 10V reverse bias and a junction capacitance of 35pF at 4V and 1MHz. The diode operates over a temperature range of -40°C to 125°C, with a junction-to-ambient thermal resistance of 160°C/W.
The device is supplied in a leadless chip package that is compatible with 0603 (1608 metric) surface mount footprints. It is RoHS3 compliant, halogen free, and has an MSL rating of 1 (unlimited). Common applications include portable communications, computing, and video equipment where compact size and low forward voltage are required.
The maximum repetitive peak reverse voltage (VRRM) is 40 V.
The average forward rectified current (IF(AV)) is 200 mA at TA = 55°C.
Typical forward voltage is 0.43 V at 200 mA, with a maximum of 0.5 V.
The device is packaged in a 0603 (1608 Metric) surface mount package.
Typical reverse current is 0.5 µA at VR = 10 V, with a maximum of 1 µA.
The junction temperature range is -40°C to +125°C.
Yes, it is RoHS3 compliant according to the datasheet.
