| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector | |
| 1st Connector Mounting Type | |
| 1st Contact Gender | |
| 2nd Connector | |
| 2nd Connector Mounting Type | |
| 2nd Contact Gender | |
| Cable Impedance | |
| Cable Type | |
| Center Conductor | |
| Color | |
| Features | |
| Insulation | |
| Jacket | |
| Length | |
| Operating Temperature | |
| Overall Impedance | |
| Shielding | |
| Strain Relief | |
| Style |

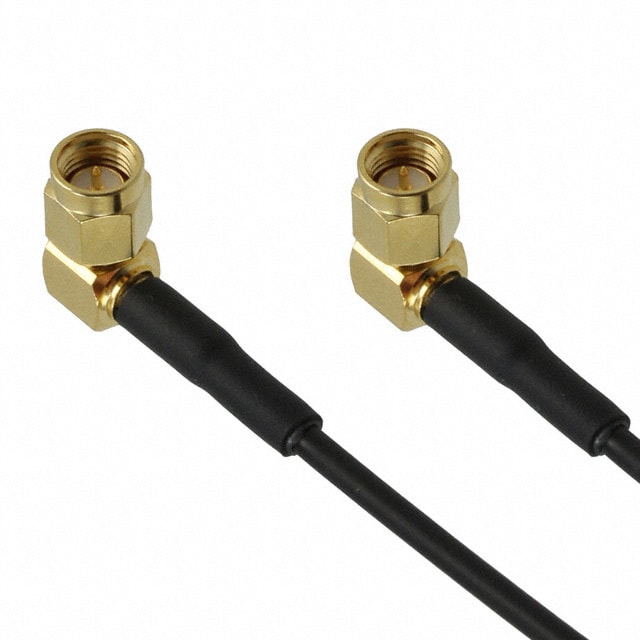

This RG174 coaxial cable assembly from Crystek Corporation (part CCSMA2-MM-RG174-12) features SMA male right angle plugs on both ends, with a cable length of 12.00 inches (304.80 mm). The cable is RG174 type with a characteristic impedance of 50 Ohms, making it suitable for RF interconnects. The assembly includes a center conductor of 26 AWG bare copper covered steel, polyethylene insulation, and a black PVC jacket. Shielding is provided by a tinned copper braid with 90% coverage. Strain relief is achieved through adhesive shrink tubing over the crimp area.
The connectors are SMA male plugs with right angle orientation, both rated for free hanging (in-line) mounting. The operating temperature range is -40°C to +85°C, allowing use in a variety of environments. This cable assembly is commonly used in RF test setups, antenna connections, and wireless communication equipment where a flexible and reliable 50 Ohm coaxial link is required.
The operating temperature range is -40°C to +85°C.
It is marked as RoHS3 compliant and REACH unaffected.
The overall impedance is 50 Ohms.
Both ends have SMA male plugs with right angle orientation.
The cable length is 12.00 inches (304.80 mm).
The cable type is RG174.
