| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector | |
| 1st Connector Mounting Type | |
| 1st Contact Gender | |
| 2nd Connector | |
| 2nd Connector Mounting Type | |
| 2nd Contact Gender | |
| Cable Impedance | |
| Cable Type | |
| Center Conductor Material | |
| Color | |
| Conductor Size | |
| Features | |
| Insulation Material | |
| Jacket Material | |
| Length | |
| Operating Temperature | |
| Overall Impedance | |
| Shield Coverage | |
| Shield Material | |
| Strain Relief | |
| Style |

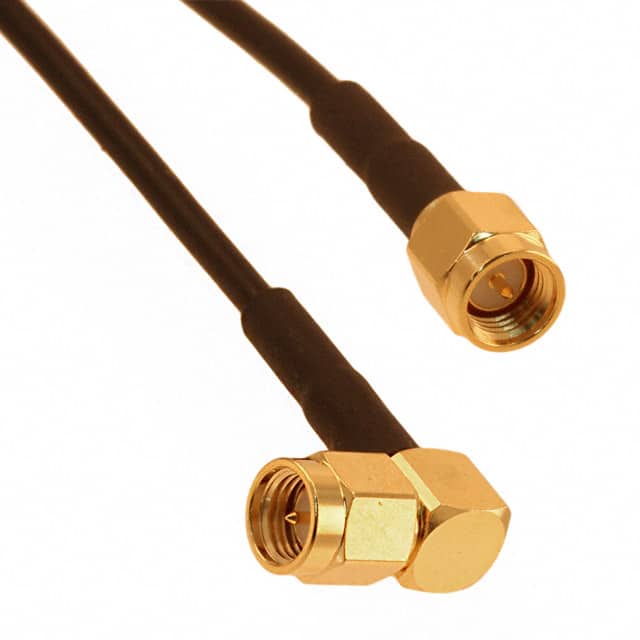

The Crystek CCSMA1-MM-RG174-6 is a 50 Ohm RG174 coaxial cable assembly featuring a straight SMA plug on one end and a right-angle SMA plug on the other. Both connectors are male and free-hanging (in-line). The cable is 6 inches (152.40mm) long and constructed with a 26 AWG bare copper covered steel center conductor, polyethylene insulation, tinned copper braid shield (90% coverage), and a black PVC jacket. The assembly includes a strain relief using adhesive shrink tubing over the crimp area. Operating temperature range is -40°C to +85°C. This shielded cable assembly is suitable for RF interconnections where space constraints benefit from a right-angle connector.
The operating temperature range is -40°C to +85°C.
It is listed as RoHS3 Compliant (unverified).
The overall impedance and cable impedance are both 50 Ω.
It has one SMA plug (male) and one SMA plug, right angle (male).
The cable is RG-174 and the length is 6 inches (152.40 mm).
The shield is a tinned copper braid with 90% coverage.
