| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Capacitance (Built-in Loading) | |
| Features | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Impedance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Standard Package Quantity | |
| Tape & Reel | |
| Type | |
| Width |

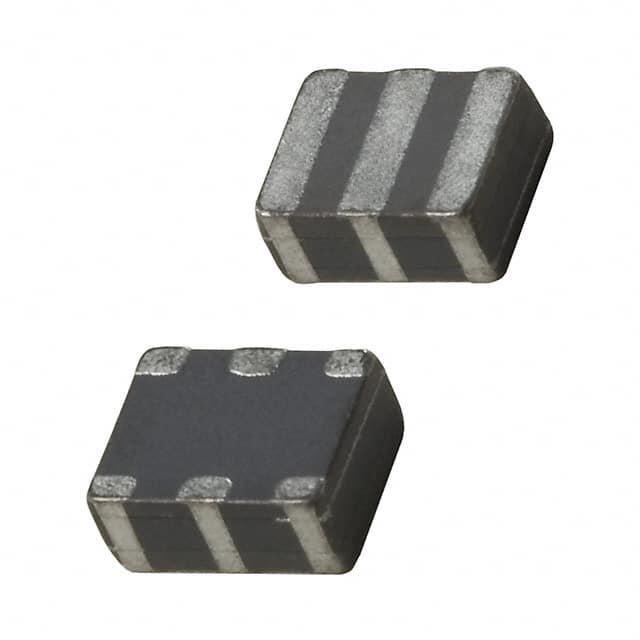

The TDK CCR33.86MXC7T is a ceramic resonator from the CCR series, designed for surface mount applications. It operates at a frequency of 33.86 MHz with an initial tolerance of ±0.5% and frequency stability of ±0.2% over the operating temperature range of -40°C to +85°C.
This resonator features built-in loading capacitance of 8pF, eliminating the need for external capacitors and simplifying circuit design. The component uses thickness shear mode or third over-tone thickness expansion mode elements for reliable oscillation in the 16.0 to 50.0 MHz band.
The device is housed in a compact 3-SMD non-standard package measuring 2.50mm x 2.00mm x 1.00mm, suitable for high-density PCB layouts. It is RoHS3 compliant and supports reflow soldering up to 260°C for lead-free processes.
The operating temperature range is -40°C to +85°C.
Yes, it has a built-in loading capacitance of 8pF.
The frequency tolerance is ±0.5%.
Yes, it is RoHS3 compliant.
The package dimensions are 2.50mm x 2.00mm x 1.00mm (3-SMD, non-standard).
