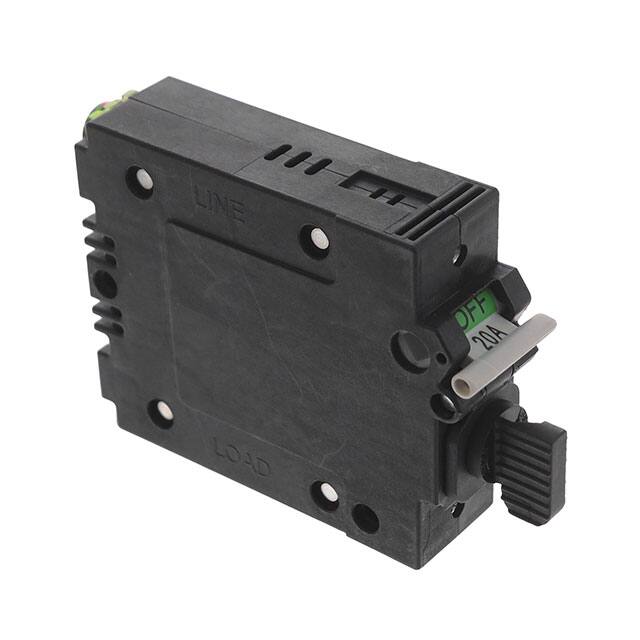

CCPLP-1-20G-P The Eaton CCPLP-1-20G-P is a Class G fuse with a 20A current rating and 600V voltage rating. It features a chassis mount and lever actuator.
Mfr Part #:

CCPLP-1-20G-P

Mfr Name: Eaton - Electronics Division
Eaton - Electronics Division
The Eaton CCPLP-1-20G-P is a Class G fuse with a 20A current rating and 600V voltage rating. It features a chassis mount and lever actuator.
Stock on Request

CCPLP-1-20G-P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Current Rating
Current Rating (Amps)
Illumination
Lead Style
Mounting Type
Number of Poles
SVHC Present
Tape & Reel
Voltage Rating
View Similar Products (0)

CCPLP-1-20G-P Description

Short technical summary and product information.

This Eaton CCPLP-1-20G-P is a Class G fuse designed for electrical protection. It has a current rating of 20A and a voltage rating of 600V.



The fuse features a chassis mount type and a lever actuator for operation. It is approved by CE, cULus, UL508, and UL98 standards.



Environmental compliance includes RoHS3 status and an MSL of 1. The REACH status is unaffected. This component is suitable for applications requiring reliable overcurrent protection within its specified ratings.

CCPLP-1-20G-P Quick Information

Product Type: Fuse
Series: CCPLP
Canonical Name: Eaton CCPLP-1-20G-P Fuse
Subcategory: Class G Fuse

CCPLP-1-20G-P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

CCPLP-1-20G-P Features

  • 20A current rating for protection.
  • 600V voltage rating.
  • Chassis mount type.
  • Lever actuator.
  • RoHS3 compliant.

CCPLP-1-20G-P Applications

  • Branch circuit protection in industrial panels.
  • Motor overload protection in control centers.
  • Power distribution to lighting and equipment.
  • Overcurrent protection in switchgear.

CCPLP-1-20G-P FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the CCPLP-1-20G-P fuse?

The current rating is 20A.

What is the voltage rating for the CCPLP-1-20G-P fuse?

The voltage rating is 600V.

How is the CCPLP-1-20G-P fuse mounted?

It is a chassis mount type.

What is the RoHS status of this fuse?

It is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the CCPLP-1-20G-P?

The MSL is 1 Unlimited.
