| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Package / Case | |
| Supply Current | |
| Supply Voltage | |
| Type | |
| Voltage | |
| Width |

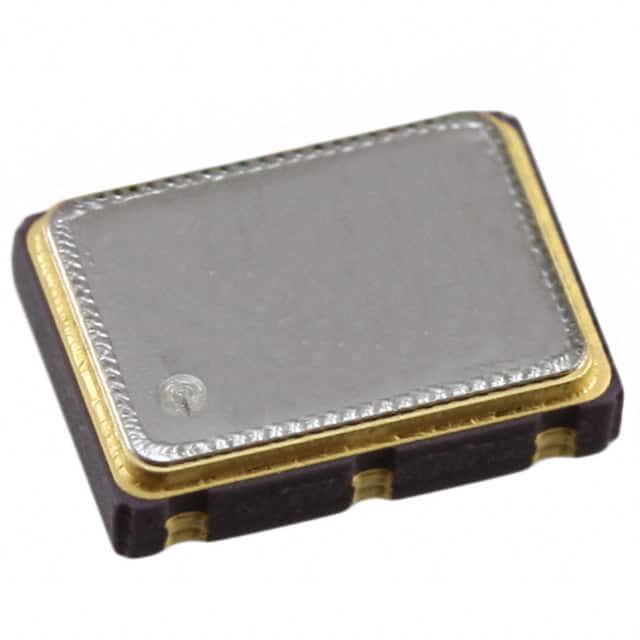

The Crystek CCPD-034-50-200.000 is a surface-mount crystal oscillator (XO) that provides a precise 200 MHz output clock signal. It uses a crystal base resonator and delivers LVPECL logic levels, making it suitable for high-speed digital systems requiring low jitter and fast edge rates.
Key electrical specifications include a nominal supply voltage of 3.3V, a supply current of 88mA, and a frequency stability of ±50ppm over the operating temperature range of 0°C to 70°C. The oscillator features an enable/disable function for power management.
The device is housed in a compact 6-SMD, No Lead package measuring 7.00mm x 5.00mm with a height of 1.80mm, designed for automated surface-mount assembly. It is RoHS3 compliant and has an MSL rating of 1 (unlimited).
LVPECL.
±50ppm.
3.3V.
0°C to 70°C.
6-SMD, No Lead, measuring 7.00mm x 5.00mm x 1.80mm.
Yes, it is RoHS3 compliant.
Yes, it features an enable/disable function.
