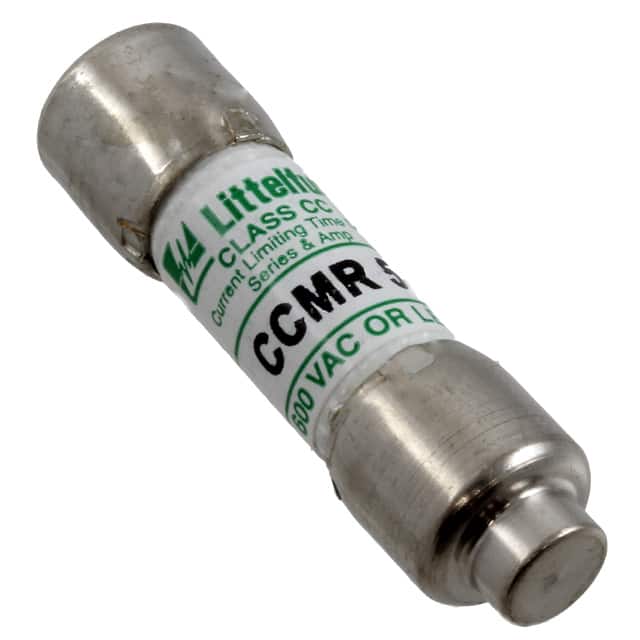

CCMR030.HXP Cartridge fuse rated 30A, 600VAC/500VDC with 300kA AC breaking capacity. Class CC slow-blow, requires holder, 5AG package (10x38mm).
Mfr Part #:

CCMR030.HXP

Available from 1 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Cartridge fuse rated 30A, 600VAC/500VDC with 300kA AC breaking capacity. Class CC slow-blow, requires holder, 5AG package (10x38mm).
✓ Total Stock: 3,000 pcs

CCMR030.HXP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CCMR030.HXP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Breaking Capacity @ Rated Voltage
Class
Current Rating
Current Rating (Amps)
Fuse Type
Mounting Type
Package / Case
Response Time
Voltage Rating
View Similar Products (0)

CCMR030.HXP Description

Short technical summary and product information.

The Littelfuse CCMR030.HXP is a Class CC, slow-blow cartridge fuse designed for motor protection applications. It is rated for 30A continuous current and can handle up to 600VAC/500VDC, making it suitable for industrial and commercial power systems. The fuse offers a high interrupting capacity of 300kA AC and 20kA DC, ensuring reliable fault clearing. Its slow-blow (time-delay) response accommodates inrush currents common in motor starting.



The fuse is packaged in a 5AG (10mm x 38mm) midget size and requires a compatible holder for installation. This mechanical design facilitates easy replacement in panelboards and disconnect switches. The CCMR030.HXP is approved by CE and UL, indicating compliance with international safety standards.

CCMR030.HXP Quick Information

Product Type: Cartridge Fuse
Canonical Name: Cartridge Fuse, Class CC, 30A, 600VAC/500VDC, Slow Blow
Subcategory: Electrical, Specialty Fuses

CCMR030.HXP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CCMR030.HXP Features

  • Rated 30A, 600VAC/500VDC.
  • Class CC slow-blow cartridge fuse.
  • High breaking capacity at 300kA AC.
  • Requires holder for mounting.
  • Approved by CE and UL.

CCMR030.HXP Applications

  • Specifically designed for motor protection.
  • Used in industrial branch circuits.

CCMR030.HXP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the CCMR030.HXP?

30A.

What are the voltage ratings?

600VAC and 500VDC.

What is the breaking capacity?

300kA AC and 20kA DC.

What is the response time of this fuse?

Slow Blow (time-delay).

What is the package size?

5AG, 10mm x 38mm (Midget).

What fuse class is this?

Class CC.

What applications is this fuse designed for?

Motor protection.
