| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Extraction Force (Hinged Cover) | |
| Card Insertion Force (Hinged Cover) | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Force | |
| Contact Plating | |
| Contact Resistance | |
| Current Rating | |
| Dielectric Strength (Contact) | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Insulation Resistance | |
| Mechanical Life (Hinged Cover) | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Positions | |
| Operating Temperature Range | |
| Shock Resistance | |
| Slide Locking Force | |
| Soldering Process | |
| Termination Style | |
| Vibration Resistance |

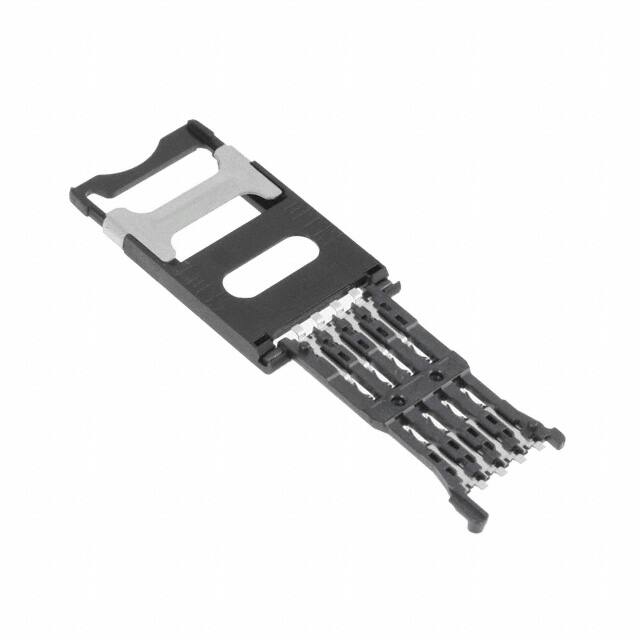

The C&K CCM03-3004LFT R102 is a SIM/SAM card connector from the CCM03 MK2 series. It features 8 inlay contacts with a hinged lid for card insertion and removal. The connector is designed for surface mount, right-angle mounting and includes a board guide feature.
Key electrical specifications include a contact resistance of 100 mΩ maximum, insulation resistance of 1000 MΩ minimum, and a current rating from 10 µA minimum to 1 A maximum. The dielectric strength between contacts is 750 Vrms minimum. The operating temperature range is -40°C to +85°C.
Mechanically, the hinged cover is rated for a minimum of 10,000 cycles. Card insertion and extraction forces are 1 N maximum each. Contact force ranges from 0.25 N minimum to 0.50 N maximum. The connector is compatible with lead-free SMT soldering processes and is RoHS compliant.
This connector accepts SIM and SAM cards.
It has 8 contacts.
It is a surface mount, right-angle connector.
The operating temperature range is -40°C to +85°C.
The current rating is 10 µA minimum to 1 A maximum.
The hinged cover is rated for a minimum of 10,000 cycles.
Yes, it is RoHS compliant.
