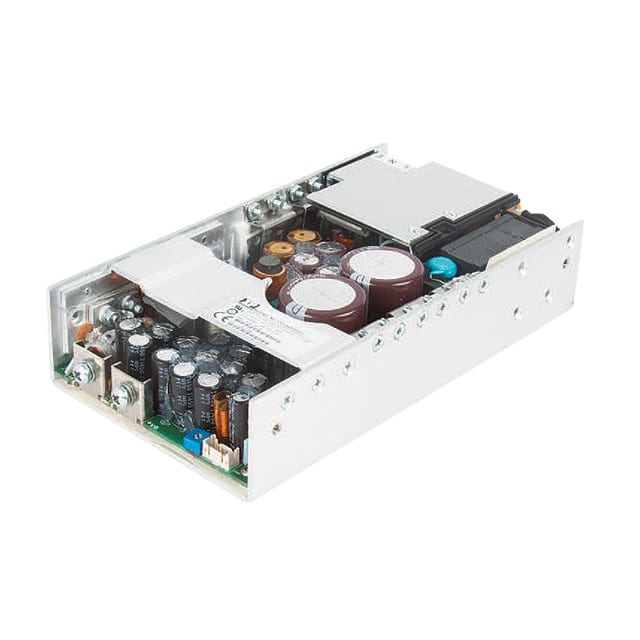

The XP Power CCL400 Series AC-DC power supply, model CCL400PS30, is designed for versatile applications requiring a stable 30V output. This open-frame converter delivers up to 13.3A and a total of 399W of power, with a high efficiency rating of 94% and universal AC input from 85 to 264 VAC.
Key features include a 5V standby output, <0.5W standby power consumption, and essential signals like power fail and inhibit. It is approved for IT and Medical safety standards, making it suitable for demanding environments. The unit operates within a temperature range of -40°C to +70°C with derating.
Designed for chassis mounting, the CCL400PS30 has dimensions of 177.8mm x 100.3mm x 39.9mm. Its robust design and comprehensive feature set make it an ideal choice for applications where fan cooling is not desirable, offering reliable power conversion for commercial and medical equipment.
The output voltage is 30 VDC.
The maximum output current is 13.3 A.
The total power output is 399W.
The operating temperature range is -40°C to +70°C with derating.
The dimensions are 177.8mm x 100.3mm x 39.9mm.
It supports chassis mount.
It has CB, CE, TUV, and UL approvals.
