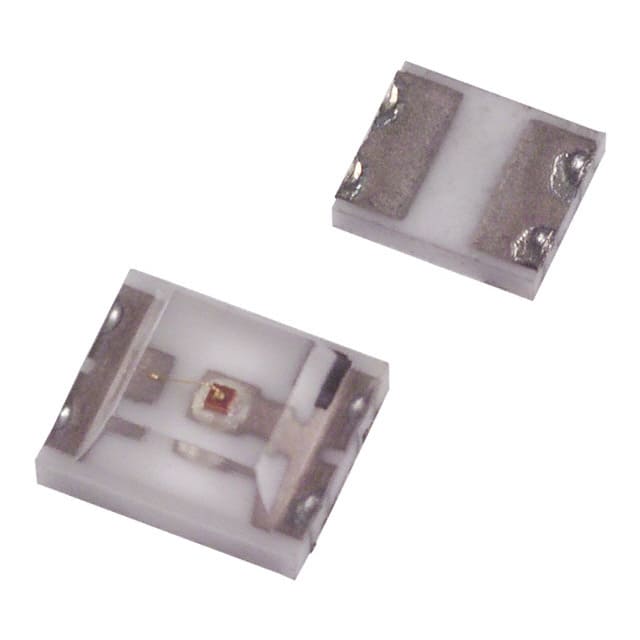

CCL-CRS10Y The Lumex Opto/Components Inc. CCL-CRS10Y is a yellow indicator LED with a clear lens. It features a surface mountable 4-SMD, No Lead package.
Mfr Part #:

CCL-CRS10Y

Available from 1 distributors
Mfr Name: Lumex Opto/Components Inc.
Lumex Opto/Components Inc.
The Lumex Opto/Components Inc. CCL-CRS10Y is a yellow indicator LED with a clear lens. It features a surface mountable 4-SMD, No Lead package.
✓ Total Stock: 283 pcs
$ Price Range: $0.08

CCL-CRS10Y Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
283 pcs
On Request
283 pcs On Request 1 On Request On Request NDC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CCL-CRS10Y Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

CCL-CRS10Y Description

Short technical summary and product information.

The Lumex Opto/Components Inc. CCL-CRS10Y is a yellow indicator LED designed for surface mount applications. It operates at a forward voltage of 2.1V and a current of 20mA, producing a luminous intensity of 8mcd.



This LED has a clear, colorless lens with a square, flat-top style and a wide 180° viewing angle. The dimensions of the LED are 3.00mm in length by 2.54mm in width, with a maximum height of 1.20mm. The package type is 4-SMD, No Lead, suitable for automated assembly processes.



Key specifications include a wavelength of 585nm. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited. REACH status is unaffected. This component is part of the Ceramic Carrier LED series.

CCL-CRS10Y Quick Information

Product Type: LED
Canonical Name: Lumex Opto/Components Inc. CCL-CRS10Y Yellow LED
Subcategory: Discrete LED

CCL-CRS10Y Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CCL-CRS10Y Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

CCL-CRS10Y Features

  • Yellow indicator LED with clear lens.
  • Surface mount 4-SMD, No Lead package.
  • 2.1V forward voltage, 20mA current.
  • 8mcd luminous intensity.
  • 180° wide viewing angle.

CCL-CRS10Y Applications

  • Used in indicator and signaling circuits
  • Suitable for electronic device illumination
  • Ideal for panel indicators
  • Applied in compact electronic assemblies

CCL-CRS10Y FAQs

6 frequently asked questions generated from this part’s specifications.
What color is the Lumex CCL-CRS10Y LED?

The Lumex CCL-CRS10Y LED is yellow.

What is the forward voltage for the CCL-CRS10Y LED?

The forward voltage for the CCL-CRS10Y LED is 2.1V.

What is the luminous intensity of the CCL-CRS10Y LED?

The luminous intensity of the CCL-CRS10Y LED is 8mcd.

What is the viewing angle of the Lumex CCL-CRS10Y LED?

The viewing angle of the Lumex CCL-CRS10Y LED is 180°.

What type of package is the CCL-CRS10Y LED in?

The CCL-CRS10Y LED is in a 4-SMD, No Lead package.

How is the CCL-CRS10Y LED mounted?

The CCL-CRS10Y LED is surface mounted.
