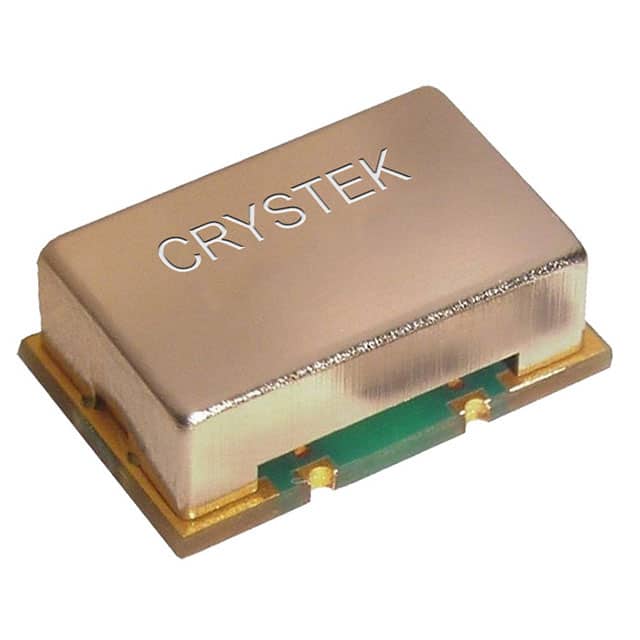

The Crystek CCHD-950-50-80.000 is a high-performance 80 MHz XO (Standard) crystal oscillator featuring an HCMOS output. It provides ultra-low phase noise with a typical noise floor of -165 dBc/Hz and low phase jitter of 40 fs (12 kHz to 20 MHz). The oscillator operates from a 3.3V supply with a maximum current consumption of 25 mA. Key electrical characteristics include a maximum rise/fall time of 3 ns (20% to 80% Vdd), a symmetry (duty cycle) of 45/55% maximum at 50% Vdd, and an output load of 15 pF. The device offers a frequency stability of ±50 ppm and an aging rate of less than 3 ppm in the first year and less than 1 ppm thereafter.
Designed for applications requiring low phase noise and jitter, this oscillator is suitable for High Definition TV, avionics low phase signal sources, and test and measurement equipment. The component is housed in a surface mount 4-SMD, No Lead package measuring 14.20 mm x 9.14 mm with a seated height of 5.30 mm. The pad finish is Immersion Gold (ENIG) with 5 micro inches maximum thickness, ensuring reliable solderability. The operating temperature range is 0°C to 70°C.
80 MHz.
3.3V.
4-SMD, No Lead.
0°C to 70°C.
Yes, RoHS3 compliant.
±50 ppm.
HCMOS.
