| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

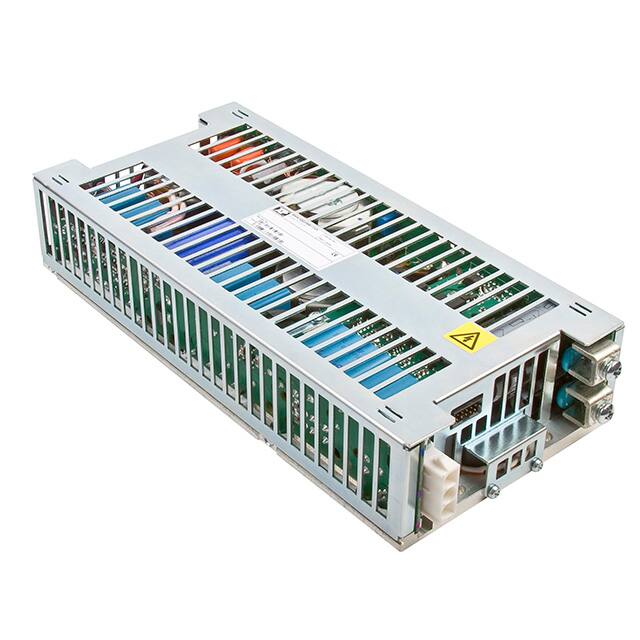

The XP Power CCH600PS28 is an enclosed AC-DC converter designed for industrial applications. It provides a 28V DC output with a maximum power rating of 605W.
Key electrical specifications include a wide input voltage range of 90-264 VAC and an efficiency of up to 90%. The converter offers features such as adjustable output voltage, load sharing, power factor correction (PFC), remote on/off control, and a standby output. It also includes comprehensive protection features like overvoltage, overload, and short circuit protection.
With an operating temperature range of -40°C to +85°C baseplate, this unit is suitable for demanding environments. It is designed for chassis mounting and has dimensions of 214.1mm x 102.1mm x 42.9mm.
Compliance includes safety approvals from CB, TUV, and UL, meeting standards such as IEC62368-1. EMC compliance includes EN55032 level B conducted emissions and MIL-STD-461E requirements.
The input voltage range is 90-264 VAC.
The baseplate operating temperature range is -40°C to +85°C.
The unit measures 214.1 mm x 102.1 mm x 42.9 mm.
Typical efficiency is 89%.
Yes, overvoltage protection is set at 110-140% of nominal voltage.
It has IEC60950-1 CB report, UL60950-1, TUV EN60950-1, and IEC62368-1 approvals.
MTBF is 300,000 hours per MIL-HDBK-217F at 25°C, ground benign.
