| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
68 pcs
|
68 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Abrasion Protection | |
| Color | |
| Cutting Method | |
| DIN EN 45545-2 | |
| Diameter | |
| Diameter - Expanded (Max) | |
| Diameter - Expanded (Min) | |
| Expandable | |
| Features | |
| Flammability Rating (DIN EN 45545-2) | |
| Flammability Rating (FMVSS-302) | |
| Flammability Rating (UL) | |
| Halogen Free | |
| Heat Protection | |
| Length | |
| Material | |
| Material Flammability Rating | |
| Melt Point | |
| Monofilament Diameter | |
| Nominal Size | |
| Number of Colors | |
| Operating Temperature | |
| Operating Temperature (Max Continuous) | |
| Operating Temperature (Min Continuous) | |
| Type | |
| Type Attributes | |
| Wall Thickness |

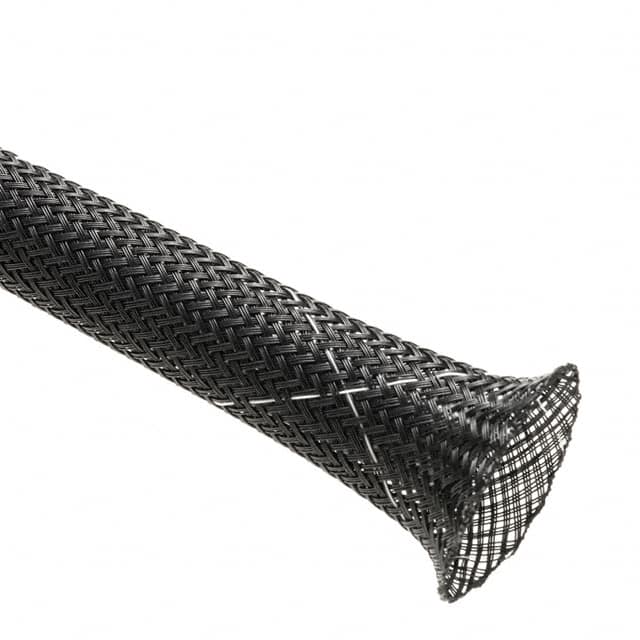

The Techflex CCF0.38TB100 Clean Cut FR expandable sleeving is a flame-retardant PET monofilament sleeve designed for wire harness protection. It features a nominal diameter of 3/8 in (9.525 mm) and expands from a minimum of 3/16 in (4.7625 mm) to a maximum of 5/8 in (15.88 mm). The sleeving is supplied on a 100 ft (30.48 m) spool in a black/white color combination (black with white tracer).
Key specifications include an operating temperature range of -70°C to 125°C continuous, with a melt point of 250°C. It holds multiple flammability ratings: UL VW-1, DIN EN 45545-2 HL2 (railway standard), and FMVSS-302 VW-1. The material is self-extinguishing, flame retardant, and resistant to abrasion and cutting. The sleeving is designed to be cut cleanly with scissors or a hot knife, maintaining a fray-resistant end.
This product is suitable for applications requiring flame retardance and ease of installation, such as railway, aerospace, and industrial cable management. The Clean Cut FR series combines the easy cut-and-install properties of standard Clean Cut sleeving with added flame inhibition for safety in sensitive environments.
-70°C to 125°C continuous.
Yes, RoHS3 compliant per existing data.
UL VW-1, DIN EN 45545-2 HL2, and FMVSS-302 VW-1.
Polyethylene Terephthalate (PET) with monofilament diameter 0.008 in.
100 ft (30.48 m).
Black with White Tracer (TB) as indicated by the part number suffix.
