Mfr Part #:

CCD-102

Mfr Name: ARCO

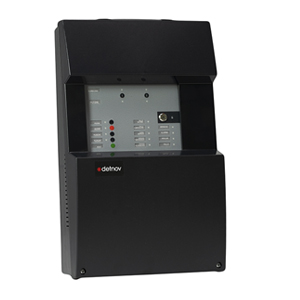

The ARCO CCD-102 is a 2-zone conventional fire alarm control panel designed for small to medium installations. It offers essential features like relay outputs for alarm and fault status, and supervised sounder outputs.

✓ Total Stock: 4,000 pcs

$ Price Range: $0.02

CCD-102 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	4,000 pcs On Request	4000 pcs	On Request	1	On Request	On Request	2026-02-25 06:16:38	On Request	On Request

CCD-102 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	ARCO
Dimensions	443 x 268 x 109 mm
Housing Material	ABS Plastic
Mounting Type	Flush Mount Option

View Similar Products (0)

CCD-102 Description

Short technical summary and product information.

The ARCO CCD-102 is a conventional fire alarm control panel from the CCD-100 series, designed to meet the requirements of small and medium-sized installations. This model features 2 zones, providing discrimination between detector alarms and manual call point alarms. It is certified according to EN 54-2, EN 54-4, and EN 54-13 standards.

Key electrical features include two configurable supervised sounder outputs, each capable of 500 mA. It also provides alarm and fault relay outputs, a 24V auxiliary output (500 mA maximum), and a 24V resettable output (500 mA maximum). An additional configurable external input is available for system expansion.

The control panel is housed in an ABS plastic cabinet, with an option for flush mounting. It supports up to 32 detectors per zone and has a maximum zone line resistance of 10 Ohms. The unit operates on a 90-264 VAC power supply and requires 2 x 7.5 Ah batteries (not included). Optional expansion cards for additional sounder outputs, relays, or communication modules are available, allowing integration with other systems and remote control via Detnov Cloud.

This panel is suitable for protecting areas such as commercial centers, schools, industrial facilities, and parking lots where up to 256 conventional detection points are required. Its simple installation and excellent quality-price ratio make it an ideal choice for fire safety.

CCD-102 Quick Information

Product Type: Fire Alarm Control Panel

Series: CCD-100

Canonical Name: Conventional Fire Alarm Control Panel

Subcategory: Conventional

CCD-102 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CCD-102 Estimated Pricing

Qty	Low	High
1+	$0.02	$0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

CCD-102 Features

2-zone conventional fire alarm control panel.
Supervised sounder outputs up to 500 mA.
24V auxiliary and resettable outputs.
ABS plastic housing with flush mount option.
Certified to EN 54-2, EN 54-4, EN 54-13.

CCD-102 Applications

Ideal for small to medium installations.
Suitable for commercial centers and schools.
Used in industrial facilities and parking lots.
Supports up to 256 conventional detection points.

CCD-102 FAQs

7 frequently asked questions generated from this part’s specifications.

How many zones does the CCD-102 support?

The CCD-102 supports 2 zones.

What is the maximum alarm current per zone?

The maximum alarm current per zone is 82 mA.

How many devices can be connected per zone?

Up to 32 detectors can be connected per zone.

What is the power supply voltage range?

The power supply accepts 90-264 VAC, 50/60 Hz.

What is the battery capacity?

The panel uses 2 x 7.5 Ah batteries.

What are the dimensions of the panel?

The dimensions are 443 x 268 x 109 mm.

Does the panel have sounder outputs?

Yes, it has two configurable supervised sounder outputs at 500 mA each.
