| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

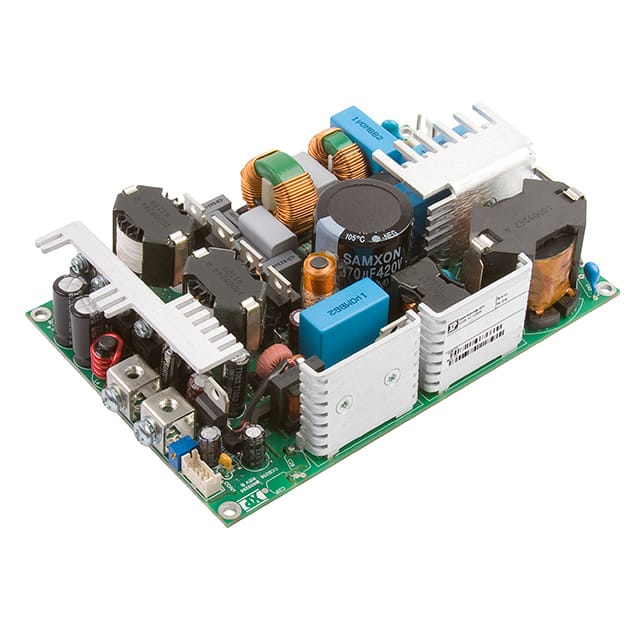

The XP Power CCB250PS12 is an open-frame AC-DC power supply designed for industrial and medical applications. It delivers up to 250W of power with a 12V DC output voltage.
Key electrical specifications include a universal input voltage range (115/230 VAC), input frequency of 47-63 Hz, and a high efficiency of up to 95%. The unit features adjustable output voltage with ±3% trim, overvoltage protection, overload protection, and short circuit protection in a hiccup mode.
This power supply is built for reliability, with an MTBF of up to 369 kHrs (CCB250) to MIL-HDBK-217F standards. It operates within a temperature range of -20°C to 70°C with derating and is convection cooled.
The CCB250PS12 meets various safety and EMC standards, including EN62368-1, EN55011/32, and EN61000-4 series. It is chassis mounted with dimensions of 152.4mm x 101.6mm x 38.1mm.
The CCB250PS12 offers an output voltage range of 12-48 VDC.
The maximum output current is 20.8 A.
The CCB250PS12 has a maximum power output of 250W.
The efficiency is up to 95%.
The operating temperature range is -20°C to 70°C with derating.
The CCB250PS12 complies with EN62368-1, CB, TUV, and UL standards.
