| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

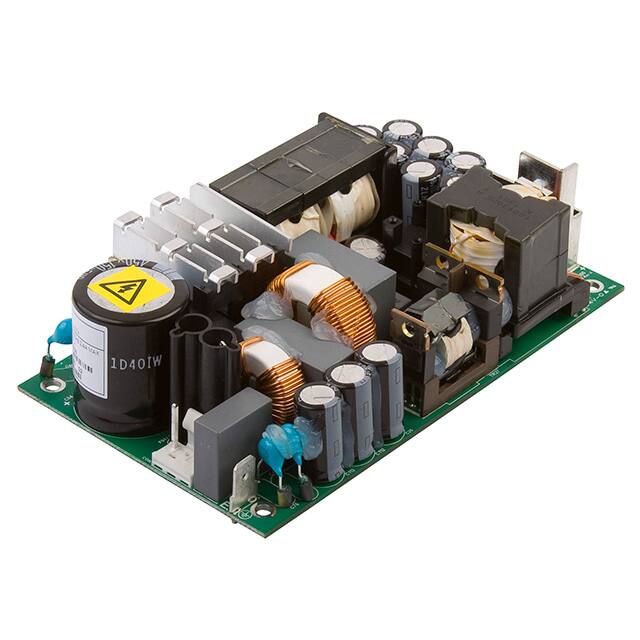

The XP Power CCB200PS48 is a high-efficiency open frame AC-DC converter from the CCB200/250 series. It delivers a single 48V output at 4.2A for a total power of 202W. The unit accepts a universal input voltage range of 85-264 VAC at 47-63 Hz, with active power factor correction achieving >0.9 power factor. With efficiency up to 95%, it minimizes power loss and heat generation.
This converter features comprehensive protection including overvoltage protection (115-140% of nominal voltage), overload protection (110-150% of nominal current), and hiccup mode short circuit protection. Additional features include remote on/off control via an isolated optocoupler, remote sense capability, an adjustable output, and a standby output. Output voltage can be trimmed by ±5%.
Designed for convection-cooled operation, the CCB200PS48 has an operating temperature range of -20°C to +85°C with derating. It measures 127.0mm x 76.2mm x 36.3mm and is designed for chassis mount installation. Isolation is rated at 4000 VAC input-to-output (2 x MOPP), making it suitable for medical applications.
The converter is approved to UL 62368-1 and carries CB, TUV, and UL certifications, supporting both ITE (commercial) and medical applications. MTBF is 230,000 hours per MIL-HDBK-217F at 25°C ground benign conditions.
The output voltage is 48 VDC with a maximum output current of 4.2 A, providing 202 W of power.
The input voltage range is 85-264 VAC at 47-63 Hz.
The efficiency is up to 95%.
The operating temperature range is -20°C to +85°C with derating.
RoHS compliance is reported as RoHS3 but is unverified. Please review the manufacturer's declaration.
It is certified to UL 62368-1 and carries CB, TUV, and UL approvals.
