CC8530RHAR The Texas Instruments CC8530RHAR is a 2.4 GHz RF Transceiver IC with an integrated MCU. It supports wireless digital audio streaming and offers features like adaptive frequency hopping.
Mfr Part #:

CC8530RHAR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CC8530RHAR is a 2.4 GHz RF Transceiver IC with an integrated MCU. It supports wireless digital audio streaming and offers features like adaptive frequency hopping.
✓ Total Stock: 86,505 pcs
$ Price Range: $3.77

CC8530RHAR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Unit Electronics Co.,Limited ✓
Non-Authorised Inventory information
69,120 pcs
On Request
69120 pcs On Request 1 On Request On Request On Request On Request On Request
Romaks Technologies ✓
Non-Authorised Inventory information
10,635 pcs
On Request
10635 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
6,750 pcs
On Request
6750 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CC8530RHAR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Data Rate (Max)
Frequency
Frequency Range
GPIO
Modulation
Mounting Type
Operating Temperature
Operating Temperature Range
Output Power
Package / Case
Power
RF Family
Sensitivity
Serial Interfaces
Storage Temperature
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

CC8530RHAR Description

Short technical summary and product information.

The Texas Instruments CC8530RHAR is an RF Transceiver IC designed for wireless digital audio streaming applications. Operating in the 2.4 GHz band, it utilizes GFSK and MSK modulation principles and supports data rates up to 5 Mbps.



This IC integrates a microcontroller and supports CD-quality uncompressed audio through its digital I²S audio interface, handling up to 4 audio channels at various sample rates. It offers robust performance with features like adaptive frequency hopping, forward error correction, and buffering for enhanced reliability and co-existence.

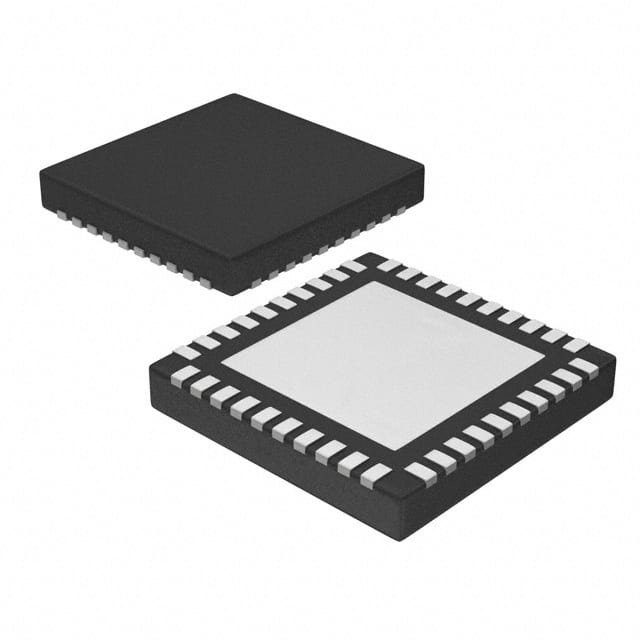

The CC8530RHAR is housed in a 40-VFQFN (6x6 mm) package and is designed for surface mount applications. It operates within a temperature range of -40°C to 85°C and requires a supply voltage between 2V and 3.6V. The device also includes I²C, I²S, and SPI serial interfaces, along with 15 GPIO pins.



This component is suitable for systems targeting compliance with worldwide radio frequency regulations, including ETSI EN 300 328 and FCC CFR47 Part 15.

CC8530RHAR Quick Information

Product Type: RF Transceiver IC
Canonical Name: CC8530RHAR RF Transceiver IC with MCU
Subcategory: Wireless Connectivity

CC8530RHAR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CC8530RHAR Estimated Pricing

Qty Low High
1+ $3.77 $3.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

CC8530RHAR Features

  • 2.4 GHz RF Transceiver with MCU
  • Supports wireless digital audio streaming
  • Up to 5 Mbps over-the-air data rate
  • CD-Quality uncompressed audio support
  • 40-VFQFN (6x6 mm) package

CC8530RHAR Applications

  • Wireless audio streaming devices
  • High-quality audio transmission
  • Robust wireless connectivity systems
  • Applications requiring low latency audio

CC8530RHAR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the CC8530RHAR?

The operating voltage range is 2V to 3.6V.

What package type is the CC8530RHAR available in?

The CC8530RHAR is available in a 40-VFQFN Exposed Pad package, specifically a 40-VQFN (6x6 mm).

What is the operating temperature range for this RF Transceiver IC?

The operating temperature range is -40°C to 85°C.

What is the RoHS status of the CC8530RHAR?

The CC8530RHAR is RoHS3 Compliant.

What is the maximum data rate supported by the CC8530RHAR?

The maximum over-the-air data rate is 5 Mbps.

What is the receiver sensitivity of the CC8530RHAR?

The receiver sensitivity is -83 or -86 dBm.
