| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Contact Termination | |
| Contact Type | |
| Current Rating (@ 14 AWG, 1 pin powered) | |
| Current Rating (@ 16 AWG, 1 pin powered) | |
| Insulator Material | |
| Latch Material | |
| Operating Temperature Range | |
| Packaging Type | |
| Plating Thickness (@ Gold over 50 µ" (1.27 µm) Ni) | |
| Plating Thickness (@ Nickel underplating) | |
| Type | |
| Voltage Rating | |
| Wire Gauge |

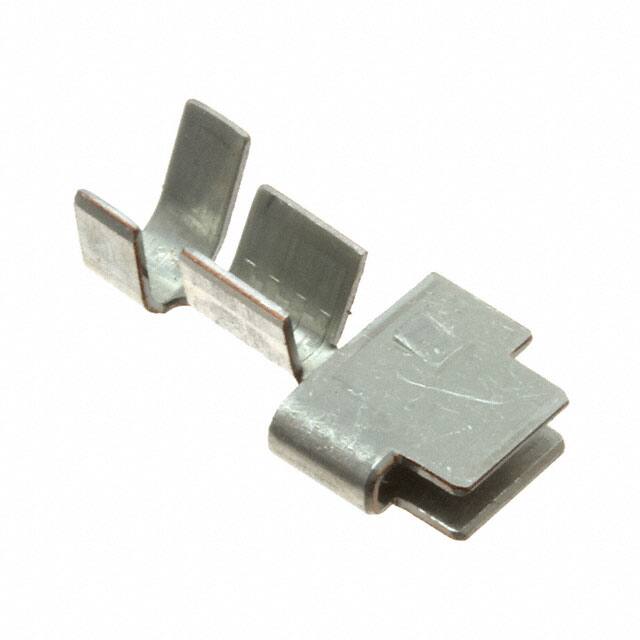

The Samtec CC46L-1416-01-T is a loose piece female blade socket contact designed for use in the CC46L series power connectors. It is a stamped copper alloy contact with a matte tin plating, suitable for 14 to 16 AWG wires. The contact is terminated via crimping, providing a reliable connection. Electrical ratings include 19.7 A per pin when powered with 14 AWG wire, and 15.9 A with 16 AWG wire. The voltage rating is 350 VAC / 495 VDC. The operating temperature range is -30°C to +105°C. The insulator and latch are made of Nylon 6/6. This contact is part of Samtec's PowerStrip product line, commonly used in power distribution applications. The packaging is loose piece, suitable for manual assembly or use with hand tools such as CAT-HT-246-1416-14. The contact mates with Samtec MPSS series connectors. For automated assembly, a mini applicator (CAT-MC-246-1416-XX-02) is available. The contact has a plating thickness of 10 µ" (0.25 µm) gold over 50 µ" (1.27 µm) nickel for the gold option, but this part number ends in -T indicating matte tin finish. The contact is RoHS3 compliant, REACH unaffected, and has MSL 1 unlimited.
19.7 A when powered with 14 AWG wire (1 pin) and 15.9 A with 16 AWG wire.
350 VAC / 495 VDC.
Female Blade Socket.
14-16 AWG.
-30°C to +105°C.
Matte Tin (suffix -T).
Nylon 6/6.
