| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
824 pcs
|
824 pcs | On Request | 1 | 10 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Diameter | |
| Features | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage |

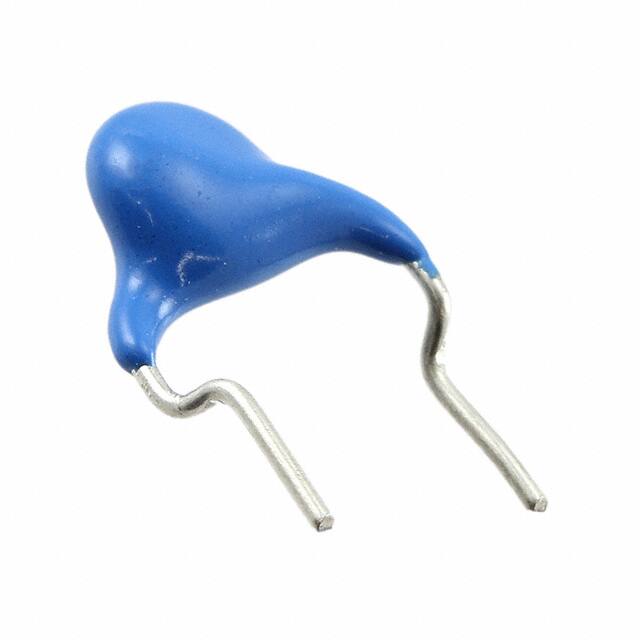

The TDK CC45SL3FD100JYNNA is a high-voltage ceramic disc capacitor designed for general-purpose applications. It offers a capacitance of 10 pF with a tight ±5% tolerance and a rated voltage of 3000V (3 kV). The capacitor features an SL temperature coefficient, ensuring stable performance across its operating temperature range of -25°C to +125°C.
This through-hole component comes in a radial disc package with formed kinked leads and a lead spacing of 7.50 mm. Its compact dimensions — 5.50 mm diameter and 9.50 mm height — make it suitable for space-constrained designs. The capacitor is characterized by a low dissipation factor and high voltage capability, making it ideal for snubber circuits, coupling, and filtering in high-voltage power supplies.
The part is RoHS3 compliant and has an MSL rating of 1 (unlimited), indicating no moisture sensitivity restrictions. It is also REACH unaffected. The CC45 series from TDK is known for reliable performance in demanding environments.
The capacitance is 10 pF with a tolerance of ±5%.
The rated voltage is 3000V (3 kV) DC.
The operating temperature range is -25°C to +125°C.
The temperature coefficient is SL.
It comes in a radial disc package with formed kinked leads and a lead spacing of 7.50 mm.
