| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,012 pcs
|
1012 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Application Throughput TCP | |
| Certifications | |
| Current | |
| Data Rate (Max) | |
| Features | |
| Frequency | |
| Interface | |
| Mounting Type | |
| Operating System | |
| Operating Temperature | |
| Operating Voltage | |
| Power | |
| Protocol | |
| RF Family | |
| Receiver Sensitivity | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Tape & Reel | |
| Throughput Udp Max (Maximum) | |
| Transmit Power | |
| Type | |
| Voltage |

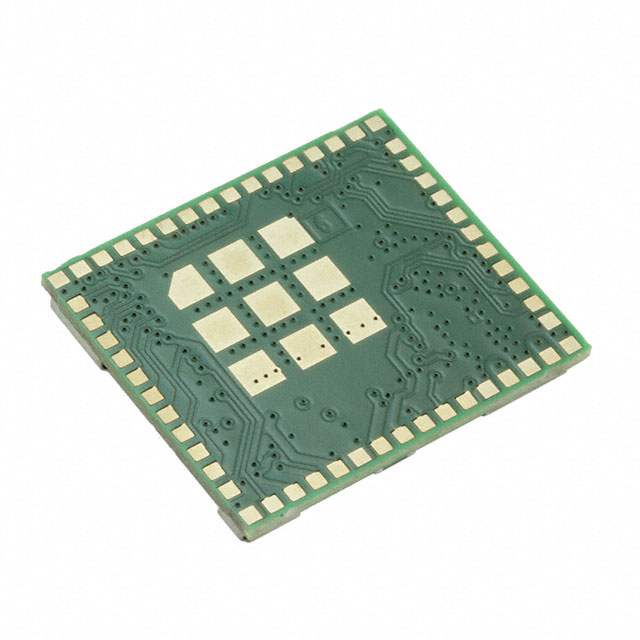

The Texas Instruments CC3100MODR11MAMOBR is a fully integrated Wi-Fi network processor module, part of the SimpleLink™ platform. It is designed to offload Wi-Fi and Internet protocols from an external MCU, enabling efficient Internet-of-Things (IoT) connectivity.
This module operates in the 2.4 GHz band and supports Wi-Fi 802.11b/g/n protocols. It features a maximum data rate of 16 Mbps and a transmit power of up to 17 dBm. The receiver sensitivity is rated at -94.7 dBm. It supports multiple security features, including WPA2 Personal and Enterprise, and offers 8 simultaneous TCP or UDP sockets, with 2 of them supporting TLS and SSL connections.
The CC3100MODR11MAMOBR operates with a wide power supply range of 2.3V to 3.6V and has an operating temperature range of -20°C to 70°C. It interfaces with external MCUs via SPI or UART. The module is supplied in a 63-SMD Module package, specifically a 63-QFM (20.5x17.5) format, and is designed for surface mounting.
Key certifications include CE, FCC, ISED, MIC, SRRC, and Wi-Fi CERTIFIED, which can save customers time and effort in product development. The module includes all necessary clocks, SPI flash, and passives, making it a complete Wi-Fi solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.13 | $12.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.3V to 3.6V.
The operating temperature range is -20°C to 70°C.
It supports Wi-Fi 802.11b/g/n protocols.
The maximum data rate is 16 Mbps.
The module supports SPI and UART host interfaces.
