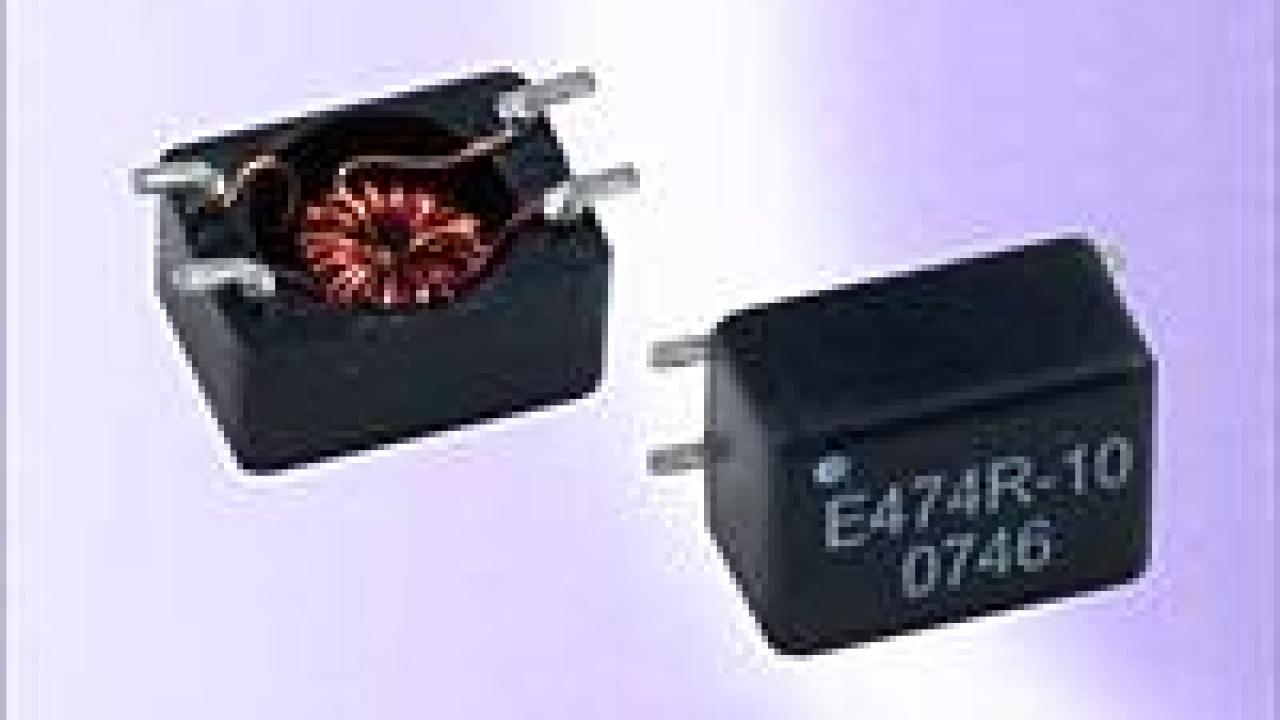

CC2824B475R-10 The Laird Technologies CC2824B475R-10 is a common mode choke designed for signal line filtering. It offers a high inductance of 4700µH and a rated current of 0.4A.
Mfr Part #:

CC2824B475R-10

Available from 2 distributors
Mfr Name: Laird Technologies
Laird Technologies
The Laird Technologies CC2824B475R-10 is a common mode choke designed for signal line filtering. It offers a high inductance of 4700µH and a rated current of 0.4A.
✓ Total Stock: 8,357 pcs
$ Price Range: $0.65

CC2824B475R-10 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,000 pcs
On Request
7000 pcs On Request 1 On Request On Request 17+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,357 pcs
On Request
1357 pcs On Request 1 On Request On Request 19+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CC2824B475R-10 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Filter Type
Inductance
Length
Mounting Type
Number of Lines
Operating Temperature
Shelf Life
Tape & Reel
Width
View Similar Products (0)

CC2824B475R-10 Description

Short technical summary and product information.

The Laird Technologies CC2824B475R-10 is a surface-mount (SMT) common mode choke from the CC2824 series. This component is designed for signal line filtering applications, featuring a high inductance of 4700µH at 100 KHz and a rated current of 0.4A.



With a typical peak impedance of 12300Ω at 2 MHz, this choke is effective in suppressing common mode noise. It operates within a temperature range of -40°C to 125°C and has a coil-to-coil voltage rating of 750 VAC. The component measures 7.50mm in length, 6.00mm in width, and 3.80mm in height.



Compliance includes RoHS3, REACH Unaffected, and Moisture Sensitivity Level 1. It is supplied in tape and reel packaging with 1500 parts per reel.

CC2824B475R-10 Quick Information

Product Type: Common Mode Choke
Series: CC2824
Canonical Name: Laird Technologies CC2824B475R-10 Common Mode Choke
Subcategory: EMC Components

CC2824B475R-10 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

CC2824B475R-10 Estimated Pricing

Qty Low High
1+ $0.65 $0.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

CC2824B475R-10 Features

  • SMT common mode choke for signal line filtering.
  • High inductance of 4700µH at 100 KHz.
  • Rated for 0.4A maximum current.
  • Wide operating temperature range: -40°C to 125°C.
  • Compact SMT dimensions: 7.50mm x 6.00mm x 3.80mm.

CC2824B475R-10 Applications

  • Effective in suppressing common mode noise.
  • Suitable for SMT assembly processes.
  • Used in applications requiring signal integrity.
  • Designed for CAN-Bus communication systems.

CC2824B475R-10 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the CC2824B475R-10?

The operating temperature range is -40°C to 125°C.

What is the inductance of the CC2824B475R-10?

The inductance is 4700µH measured at 100 KHz.

What is the rated current of the CC2824B475R-10?

The maximum rated current is 0.4A.

What is the maximum DC resistance of the CC2824B475R-10?

The maximum DCR is 0.55Ω.

What is the peak impedance of the CC2824B475R-10?

The typical peak impedance is 12300Ω at 2 MHz.

What is the mounting type for the CC2824B475R-10?

The mounting type is SMT.

What is the coil-to-coil isolation voltage of the CC2824B475R-10?

The coil-to-coil isolation voltage is 750 VAC.
