| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,027 pcs
|
6027 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,530 pcs
|
1530 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CPU | |
| Cryptographic accelerators | |
| Current | |
| Data Rate (Max) | |
| Edge AI Enabled | |
| Features | |
| Flash Memory | |
| Frequency | |
| Frequency Band | |
| GPIO | |
| Lead Style | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating System | |
| Operating Temperature | |
| Package Size | |
| Peripherals | |
| Power | |
| Protocol | |
| RF Family | |
| ROM Memory | |
| SRAM | |
| Security Features | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Type | |
| Voltage |

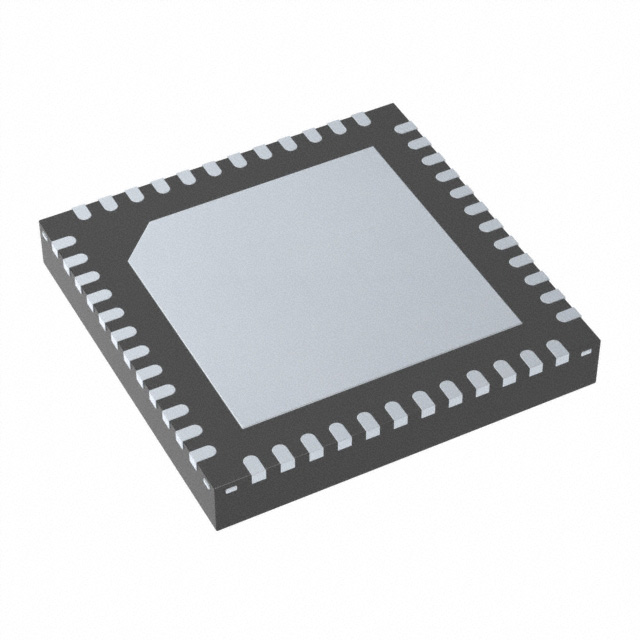

The Texas Instruments CC2652P1FRGZR is a versatile wireless MCU designed for low-power 2.4 GHz applications. It integrates an Arm Cortex-M4F processor running at 48MHz, offering 352kB of flash memory and 80kB of SRAM for application code and data.
This device supports multiple wireless protocols including Bluetooth Low Energy, Thread, and Zigbee 3.0, making it suitable for a wide range of IoT and connectivity applications. Key features include a sensitivity of -105dBm and an integrated power amplifier providing up to 19.5dBm output power.
The CC2652P1FRGZR is available in a 48-VQFN package measuring 7mm x 7mm, suitable for surface mounting. It operates within an ambient temperature range of -40°C to 85°C and utilizes a supply voltage range of 1.8V to 3.8V.
Security features such as cryptographic acceleration, secure boot, and secure firmware updates are included, enhancing device protection. The MCU also features a dedicated sensor controller for low-power sensor data acquisition.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.44 | $3.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.8V to 3.8V.
It is available in a 48-VFQFN Exposed Pad package, with a supplier device package of 48-VQFN (7x7).
The operating temperature range is -40°C to 85°C.
It supports Bluetooth v5.0, Thread, and Zigbee® protocols.
The device has 352kB of flash memory and 80kB of SRAM.
The maximum output power is 19.5dBm.
The best sensitivity is -105dBm.
