| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
175 pcs
|
175 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 2 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Operating Temperature Range | |
| Operating Voltage | |
| Output Power | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel |
The Texas Instruments CC2591RGVT is a cost-effective and high-performance RF front end for low-power and low-voltage 2.4-GHz wireless applications. It serves as a range extender for 2.4-GHz low-power RF transceivers, transmitters, and System-on-Chip products.
The CC2591RGVT increases the link budget by providing a power amplifier for increased output power and a low-noise amplifier (LNA) for improved receiver sensitivity. It offers an output power of up to 22 dBm and an LNA noise figure of 4.8 dB. The device operates within a temperature range of -40 to 85°C and supports a supply voltage from 2 V to 3.6 V.
Designed for seamless integration with 2.4-GHz low-power RF devices, the CC2591RGVT incorporates switches, RF matching, and a balun, minimizing the need for external components. It is housed in a compact 4x4 mm QFN-16 package, making it suitable for space-constrained designs. The device also features low transmit and receive current consumption, with 100 mA during transmit at 3 V for 20-dBm output and 3.4 mA for high-gain receive mode.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.59 | $3.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40 to 85°C.
The output power is up to 22 dBm.
The LNA noise figure is 4.8 dB.
The operating voltage range is 2 to 3.6 V.

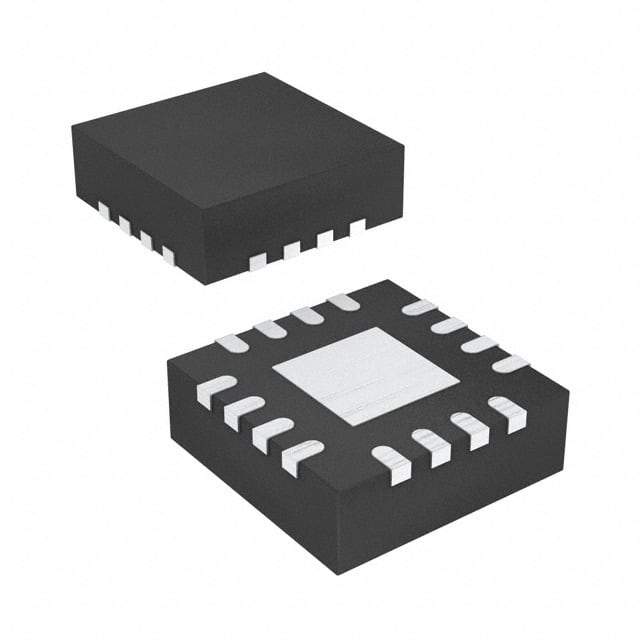

The CC2591RGVT is supplied in a 16-VQFN Exposed Pad package.
