| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Utilized IC | |
| Voltage |

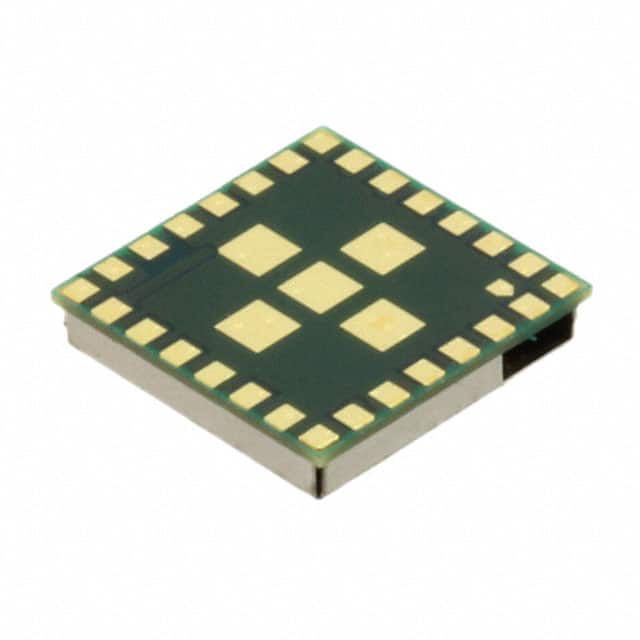

The Texas Instruments CC2564MODNCMOER is a Bluetooth transceiver module designed for wireless connectivity applications. It operates in the 2.4GHz frequency band and supports the Bluetooth v4.1 protocol.
Key electrical specifications include a maximum TX power of +10dBm and a typical RX sensitivity of -93dBm, with a data rate of up to 4Mbps. The module operates within a voltage range of 2.2V to 4.8V and consumes 112.5mA of current. It supports serial interfaces such as I²S and UART, and utilizes the CC2564 IC.
This module is designed for surface mounting and comes in a 33-SMD Module package. It features an external RF interface and requires an external antenna, as the antenna is not included. The operating temperature range is from -30°C to 85°C.
The CC2564MODNCMOER is noted as 'NOT RECOMMENDED FOR NEW DESIGNS' by the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -30°C to 85°C.
The CC2564MODNCMOER supports Bluetooth v4.1 protocol.
The typical RX sensitivity is -93dBm.
The operating voltage range is 2.2V to 4.8V.
No, the antenna is not included with this module.
The module supports I²S and UART serial interfaces.
