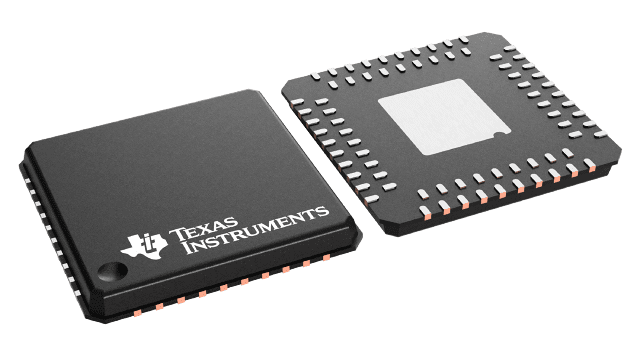

CC2564BRVMR The Texas Instruments CC2564BRVMR is a Bluetooth Dual Mode transceiver IC supporting Basic Rate (BR), Enhanced Data Rate (EDR), and Low Energy (LE). It operates within a temperature range of -40 to 85°C.
Mfr Part #:

CC2564BRVMR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CC2564BRVMR is a Bluetooth Dual Mode transceiver IC supporting Basic Rate (BR), Enhanced Data Rate (EDR), and Low Energy (LE). It operates within a temperature range of -40 to 85°C.
✓ Total Stock: 39,530 pcs
$ Price Range: $2.74

CC2564BRVMR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
31,008 pcs
On Request
31008 pcs On Request 1 On Request On Request 17+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
3,314 pcs
On Request
3314 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
3,228 pcs
On Request
3228 pcs On Request 1 On Request On Request 22+ On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,980 pcs
On Request
1980 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CC2564BRVMR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature Range
Package Quantity
Pitch
Tape & Reel
View Similar Products (0)

CC2564BRVMR Description

Short technical summary and product information.

The Texas Instruments CC2564BRVMR is a single-chip Bluetooth solution offering Basic Rate (BR), Enhanced Data Rate (EDR), and Low Energy (LE) support. Qualified against Bluetooth Core 4.1, this dual-mode transceiver is designed for low-cost applications and features a single-ended 50-Ohm RF interface.



Key features include support for up to 7 active devices, scatternet capabilities allowing up to 3 piconets simultaneously, and multiple SCO links. It supports various voice air-coding formats and provides an assisted mode for HFP 1.6 Wideband Speech (WBS) or A2DP profiles to reduce host processing and power consumption.



For Low Energy (LE) operations, the CC2564BRVMR supports up to 10 connections and multiple sniff instances for minimum power consumption. Its independent buffering for LE ensures performance is not affected by BR/EDR operations. The device also includes built-in coexistence and prioritization handling for BR/EDR and LE.



Packaged in a 76-terminal VQFNP-MR (RVM) measuring 8mm x 8mm with a 0.6mm pitch, this surface-mount component is supplied on tape and reel in quantities of 250 or 2500. It operates within a temperature range of -40°C to 85°C.

CC2564BRVMR Quick Information

Product Type: Bluetooth Transceiver IC
Canonical Name: Texas Instruments CC2564BRVMR Bluetooth Dual Mode Transceiver
Subcategory: Bluetooth

CC2564BRVMR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CC2564BRVMR Estimated Pricing

Qty Low High
1+ $2.74 $2.74

Estimated market price range - modelled values for guidance only, not live distributor offers.

CC2564BRVMR Features

  • Dual-mode Bluetooth transceiver with BR/EDR/LE
  • Bluetooth Core 4.1 qualified
  • Supports up to 10 LE connections
  • Single-ended 50-Ohm RF interface
  • Operates from -40 to 85°C

CC2564BRVMR Applications

  • Ideal for wireless audio streaming
  • Suitable for IoT device connectivity
  • Used in consumer electronics
  • Enables seamless device pairing
  • Supports low-power sensor networks

CC2564BRVMR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Bluetooth version of the CC2564BRVMR?

Bluetooth 4.0.

Does the CC2564BRVMR support dual-mode Bluetooth?

Yes, it supports Dual Mode (BR/EDR/LE).

What is the operating temperature range of the CC2564BRVMR?

-40 to 85°C.

What is the RF interface type of the CC2564BRVMR?

Single-Ended 50-Ohm.

How many LE connections does the CC2564BRVMR support?

Up to 10 LE connections.

What is the package type of the CC2564BRVMR?

VQFNP-MR (RVM) surface mount package with 0.6mm pitch.

Is the CC2564BRVMR recommended for new designs?

No, this part is not recommended for new designs.
