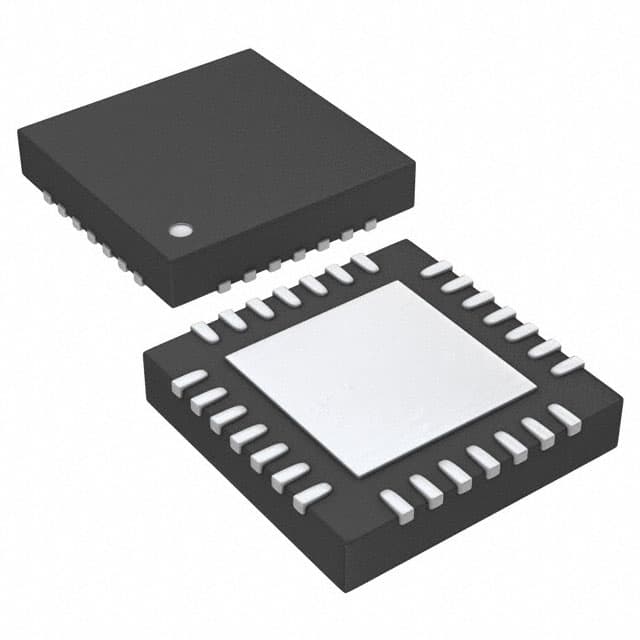

CC2520RHDT

The Texas Instruments CC2520RHDT is a highly integrated, low-power 2.4 GHz RF transceiver designed for Zigbee and IEEE 802.15.4 wireless applications. This device offers excellent performance with a sensitivity of -98 dBm and a link budget of 103 dB, enabling long-range communication up to 400 meters line-of-sight.

Key electrical characteristics include a wide supply voltage range of 1.8 V to 3.8 V and low current consumption, with RX at 18.5 mA and TX at 33.6 mA @ +5 dBm. It supports data rates up to 250 kbps using DSSS modulation and includes an AES-128 security module for enhanced data protection. The transceiver features extensive IEEE 802.15.4 MAC hardware support to offload the microcontroller.

Packaged in a compact 5x5 mm 28-VQFN (RHD) surface-mount package, the CC2520RHDT is suitable for space-constrained designs. Its operating temperature range is -40°C to 125°C, making it robust for industrial monitoring, home automation, and automatic meter reading applications. The device is RoHS compliant.

This transceiver is designed for systems targeting compliance with worldwide radio frequency regulations, including ETSI EN 300 328 and EN 300 440 class 2 (Europe), FCC CFR47 Part 15 (US), and ARIB STD-T66 (Japan). It offers state-of-the-art selectivity and co-existence features, such as 49 dB adjacent channel rejection and 54 dB alternate channel rejection.
