CC2510F32RHHR The Texas Instruments CC2510F32RHHR is a 2.4 GHz RF transceiver with an integrated 8051 MCU. It offers a data rate up to 500 kBaud and a sensitivity of -103 dBm.
Mfr Part #:

CC2510F32RHHR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CC2510F32RHHR is a 2.4 GHz RF transceiver with an integrated 8051 MCU. It offers a data rate up to 500 kBaud and a sensitivity of -103 dBm.
✓ Total Stock: 45,983 pcs
$ Price Range: $3.07

CC2510F32RHHR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
32,873 pcs
On Request
32873 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
10,406 pcs
On Request
10406 pcs On Request 1 On Request On Request 13+05 On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
1,580 pcs
On Request
1580 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,124 pcs
On Request
1124 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CC2510F32RHHR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Data Rate (Max)
Frequency
GPIO
Industrial Grade
Lead Spacing
Medical Grade
Memory Size
Military Grade
Modulation
Mounting Type
Operating Temperature
Power
RF Family
Sensitivity
Serial Interfaces
Supplier Device Package
Supplier Package
Tape & Reel
Type
Voltage
View Similar Products (0)

CC2510F32RHHR Description

Short technical summary and product information.

The Texas Instruments CC2510F32RHHR is a low-power 2.4 GHz system-on-chip (SoC) designed for wireless applications. It integrates a high-performance 8051 microcontroller core with 32kB of in-system programmable flash memory and 4kB of RAM.



This device features a 2.4 GHz RF transceiver with excellent receiver selectivity and blocking performance, capable of a sensitivity of -103 dBm at 2.4 kBaud. It supports programmable data rates up to 500 kBaud and programmable output power up to 1 dBm. The operating frequency range is 2400 - 2483.5 MHz.

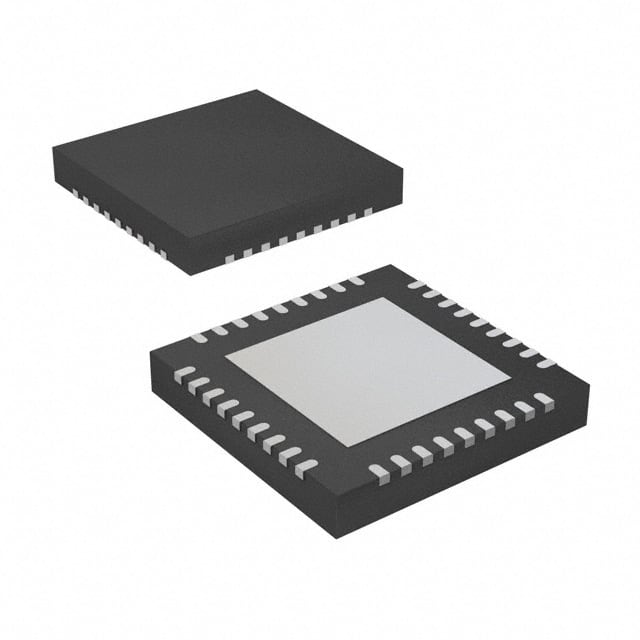

Electrical characteristics include a wide supply voltage range of 2.0V to 3.6V. Current consumption is low, with RX at 17.1 mA and TX at 16 mA. The CC2510F32RHHR is housed in a 36-VFQFN exposed pad package, suitable for surface mount applications.



It operates within a temperature range of -40°C to 85°C. The device supports multiple serial interfaces including I²S, SPI, and USART, and provides 21 GPIO pins.

CC2510F32RHHR Quick Information

Product Type: RF Transceiver IC
Canonical Name: CC2510F32RHHR
Subcategory: System-on-Chip (SoC)

CC2510F32RHHR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CC2510F32RHHR Estimated Pricing

Qty Low High
1+ $3.07 $3.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

CC2510F32RHHR Features

  • 2.4 GHz RF transceiver with 8051 MCU
  • High sensitivity of -103 dBm at 2.4 kBaud
  • Up to 500 kBaud programmable data rate
  • 32kB Flash and 4kB SRAM memory
  • Surface mount 36-VFQFN package

CC2510F32RHHR Applications

  • Low-power wireless applications
  • 2.4 GHz ISM band systems
  • Embedded control systems
  • Wireless sensor networks

CC2510F32RHHR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating frequency of the CC2510F32RHHR?

The CC2510F32RHHR operates at 2.4 GHz.

What is the maximum data rate supported by this RF transceiver?

The maximum data rate supported is 500 kBaud.

What is the receiver sensitivity of the CC2510F32RHHR?

The receiver sensitivity is -103 dBm at 2.4 kBaud.

What are the memory specifications for the integrated MCU?

The integrated MCU has 32kB of Flash memory and 4kB of SRAM.

What is the operating voltage range for this device?

The operating voltage range is 2V to 3.6V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package type is the CC2510F32RHHR supplied in?

It is supplied in a 36-VFQFN Exposed Pad package.
