| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
68,487 pcs
|
68487 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40,178 pcs
|
40178 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,235 pcs
|
3235 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Data Rate | |
| Data Rate (Max) | |
| Frequency | |
| Frequency Range | |
| Halogen Free | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The Texas Instruments CC2500RGP is an active RF transceiver IC operating in the 2.4 GHz ISM band. It is designed for low-power wireless applications and supports multiple modulation schemes including OOK, 2-FSK, GFSK, and MSK.
Key electrical specifications include a frequency range of 2400-2483.5 MHz, a maximum data rate of 500 kBaud, and a high sensitivity of -104 dBm at 2.4 kBaud. The device offers programmable output power up to +1 dBm and operates with a supply voltage range of 1.8V to 3.6V. Current consumption is low, with a typical RX current of 13.3 mA at 250 kBaud and a sleep mode current of just 400 nA.

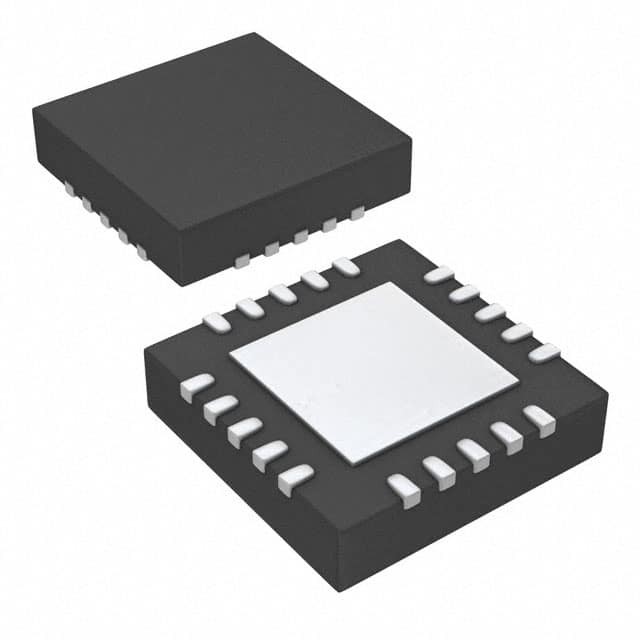

This transceiver features a fast startup time of 240 us from sleep mode and includes integrated analog temperature sensor. It supports frequency hopping and multichannel systems due to a fast settling frequency synthesizer. The package is a compact 20-VFQFN Exposed Pad (4x4 mm), suitable for surface mounting.
The CC2500RGP is RoHS compliant and designed with few external components, simplifying system design.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.74 | $1.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 2400 to 2483.5 MHz.
The maximum data rate is 500 kBaud.
The receiver sensitivity is -104 dBm at 2.4 kBaud.
The programmable output power is up to +1 dBm.
The operating voltage range is 1.8V to 3.6V.
The operating temperature range is -40°C to 85°C.
It supports OOK, 2-FSK, GFSK, and MSK modulation.
