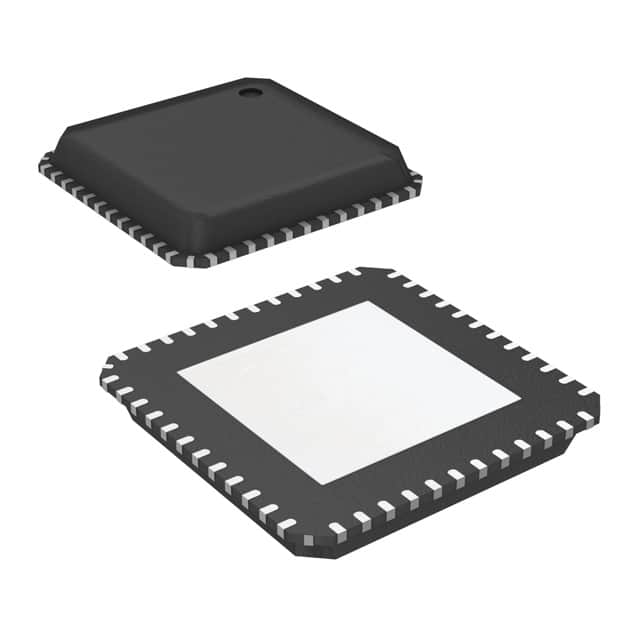

CC2430F64RTCR The Texas Instruments CC2430F64RTCR is an RF Transceiver IC supporting 2.4 GHz IEEE 802.15.4 and Zigbee protocols. It features a 64kB Flash memory and a 48-VFQFN package.
Mfr Part #:

CC2430F64RTCR

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CC2430F64RTCR is an RF Transceiver IC supporting 2.4 GHz IEEE 802.15.4 and Zigbee protocols. It features a 64kB Flash memory and a 48-VFQFN package.
✓ Total Stock: 16,436 pcs
$ Price Range: $7.45

CC2430F64RTCR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
16,436 pcs
On Request
16436 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CC2430F64RTCR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Data Rate (Max)
Frequency
GPIO
Memory Size
Modulation
Mounting Type
Operating Temperature
Power
Protocol
RF Family
Sensitivity
Serial Interfaces
Supplier Device Package
Type
Voltage
View Similar Products (0)

CC2430F64RTCR Description

Short technical summary and product information.

The Texas Instruments CC2430F64RTCR is a System-on-Chip solution designed for 2.4 GHz IEEE 802.15.4 and Zigbee wireless applications. This RF transceiver IC integrates a high-performance 8051 microcontroller core with 64kB of in-system programmable flash memory and 8kB of RAM.



Key electrical specifications include an operating voltage range of 2.0V to 3.6V, an operating current of 26.7mA (RX/TX), and a transmit power of 0dBm. The device boasts excellent receiver sensitivity of -92dBm, making it suitable for robust wireless communication.



It supports serial interfaces like SPI and USART, and provides 21 general-purpose I/O pins. The CC2430F64RTCR operates within a temperature range of -40°C to 85°C and is housed in a 48-VFQFN exposed pad package, suitable for surface mounting.



This part is noted as 'NOT RECOMMENDED FOR NEW DESIGNS'.

CC2430F64RTCR Quick Information

Product Type: RF Transceiver IC
Series: CC2430
Canonical Name: Texas Instruments CC2430 System-on-Chip Solution for 2.4 GHz IEEE 802.15.4 / ZigBee
Subcategory: Low-power 2.4-GHz products

CC2430F64RTCR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CC2430F64RTCR Estimated Pricing

Qty Low High
1+ $7.45 $7.45

Estimated market price range - modelled values for guidance only, not live distributor offers.

CC2430F64RTCR Features

  • 2.4 GHz IEEE 802.15.4 / Zigbee transceiver.
  • Integrated 8051 microcontroller core.
  • 64kB Flash and 8kB RAM.
  • Wide supply voltage range 2.0V to 3.6V.
  • Low power consumption modes.

CC2430F64RTCR Applications

  • Ideal for Zigbee mesh networks.
  • Suitable for low-power wireless applications.
  • Used in smart home devices.
  • Applicable for industrial automation.

CC2430F64RTCR FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the CC2430F64RTCR?

The operating voltage range is 2V to 3.6V.

What package type is the CC2430F64RTCR?

The CC2430F64RTCR is available in a 48-VFQFN Exposed Pad package.

What is the operating temperature range for this RF transceiver?

The operating temperature range is -40°C to 85°C.

Is the CC2430F64RTCR RoHS compliant?

Yes, the CC2430F64RTCR is RoHS3 Compliant.
