| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Current - Output (Max) | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Voltage - Input (Min) | |
| Voltage - Output 1 | |
| Width |

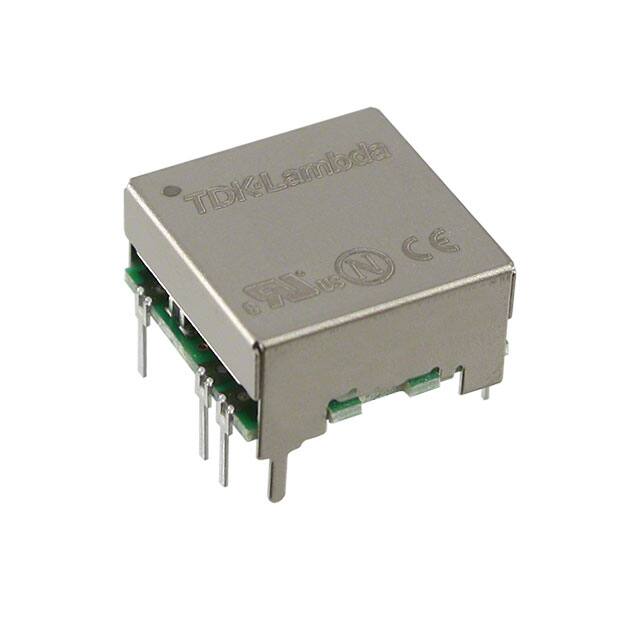

The TDK-Lambda CC1R5-1205SF-E is an isolated DC-DC converter module designed for commercial (ITE) applications. It delivers a regulated 5V output from a 9V minimum input, with a maximum output current of 300mA, providing 1W of power. The converter features an isolated topology for improved safety and noise immunity. Its control features include an enable pin with active-low logic. The module is housed in a compact 7-DIP through-hole package measuring 16.5mm x 16.6mm x 8.5mm. It operates over a wide temperature range of -40°C to +85°C, making it suitable for industrial environments. The CC1R5-1205SF-E is compliant with RoHS and REACH regulations, and has an MSL rating of 1 (unlimited floor life).
The output voltage is 5V nominal.
300mA.
1W.
-40°C to +85°C.
7-DIP Module.
Yes, RoHS3 compliant.
Through Hole.
