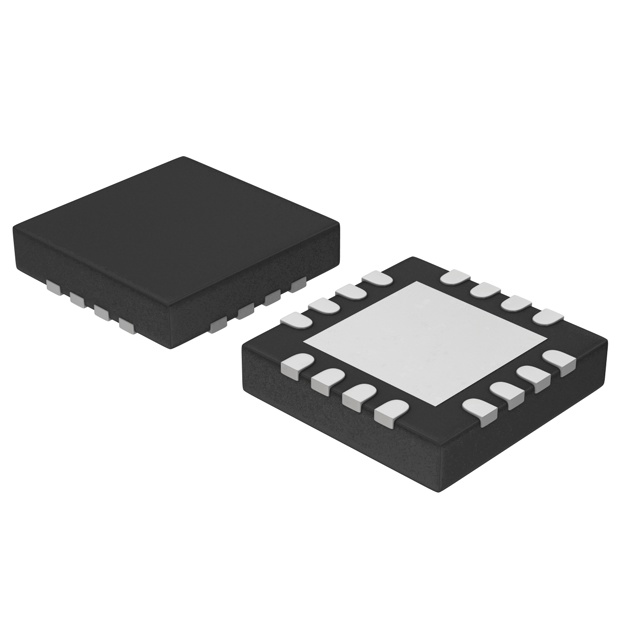

CC1150RSTR The Texas Instruments CC1150RSTR is an RF transmitter IC supporting 2-FSK, ASK, GFSK, MSK, and OOK modulation. It operates across multiple frequency bands and is suitable for surface mount applications.
Mfr Part #:

CC1150RSTR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CC1150RSTR is an RF transmitter IC supporting 2-FSK, ASK, GFSK, MSK, and OOK modulation. It operates across multiple frequency bands and is suitable for surface mount applications.
✓ Total Stock: 728 pcs
$ Price Range: $0.99

CC1150RSTR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
710 pcs
On Request
710 pcs On Request 1 On Request On Request 06+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request 14+ On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CC1150RSTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Antenna Connector
Applications
Current
Data Interface
Data Rate (Max)
Frequency
Modulation or Protocol
Mounting Type
Operating Temperature
Operating Voltage
Output Power
Power
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

CC1150RSTR Description

Short technical summary and product information.

The Texas Instruments CC1150RSTR is a versatile RF transmitter designed for various wireless applications. It supports modulation schemes including 2-FSK, ASK, GFSK, MSK, and OOK, enabling flexible communication protocols.



This component operates across several frequency bands, specifically 300MHz to 348MHz, 400MHz to 464MHz, and 800MHz to 928MHz, with a maximum data rate of 500kBaud. The output power can be adjusted from -30dBm to 10dBm, providing a good balance between range and power consumption. The device requires a supply voltage between 1.8V and 3.6V, with a typical supply current of 15.9mA and a transmitting current of 28.1mA.



Packaged in a 16-VQFN exposed pad (4x4mm), the CC1150RSTR is designed for surface mounting. It operates within a temperature range of -40°C to 85°C, making it suitable for demanding environments. Its applications include Automatic Meter Reading (AMR), Industrial, Scientific, and Medical (ISM) bands, Remote Keyless Entry (RKE), and Short-Range Devices (SRD).



The CC1150RSTR is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating it is suitable for standard industrial handling.

CC1150RSTR Quick Information

Product Type: RF Transmitter
Canonical Name: CC1150RSTR RF Transmitter
Subcategory: RF Transmitters

CC1150RSTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CC1150RSTR Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

CC1150RSTR Features

  • Supports 2-FSK, ASK, GFSK, MSK, OOK modulation.
  • Operates across 300-928MHz frequency bands.
  • Adjustable output power from -30dBm to 10dBm.
  • Maximum data rate of 500kBaud.
  • Surface mount 16-VQFN package.

CC1150RSTR Applications

  • Suitable for Automatic Meter Reading.
  • Used in ISM band applications.
  • Ideal for Remote Keyless Entry.
  • Designed for Short-Range Devices.

CC1150RSTR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating frequency of the CC1150RSTR?

It supports frequencies of 300-348MHz, 400-464MHz, 800-928MHz, and has an operating frequency of 915MHz.

What is the maximum data rate supported by the CC1150RSTR?

The maximum data rate is 500kBaud.

What is the output power range of the CC1150RSTR?

The output power range is from -30dBm to 10dBm.

What modulation protocols does the CC1150RSTR support?

It supports 2-FSK, ASK, GFSK, MSK, and OOK modulation protocols.

What is the package type of the CC1150RSTR?

It is packaged in a 16-VQFN (4x4) surface-mount package with an exposed pad.

What is the supply voltage range for the CC1150RSTR?

It operates within a voltage range of 1.8V to 3.6V, with typical operation at 3.3V.
