| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Connector | |
| Applications | |
| Current | |
| Data Interface | |
| Data Rate (Max) | |
| Frequency | |
| Modulation Scheme | |
| Modulation or Protocol | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (Nominal) | |
| Power | |
| Supplier Device Package | |
| Supply Voltage | |
| Tx Power Max (Maximum) | |
| Voltage |
The Texas Instruments CC1070RSQR is a true single-chip UHF RF transmitter. It is designed for very low power consumption and low cost, making it suitable for a variety of wireless applications.
This transmitter supports multiple modulation schemes including ASK, FSK, GFSK, and OOK. It offers a maximum TX power of 10 dBm and a maximum data rate of 153.6 kBaud. The operating frequency range spans from 402 MHz to 470 MHz and 804 MHz to 940 MHz.

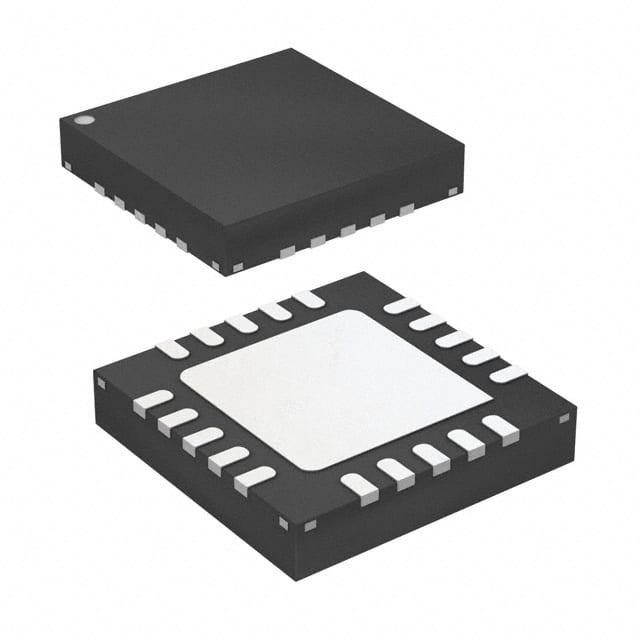

The CC1070RSQR operates with a low supply voltage ranging from 2.3V to 3.6V. It requires very few external components and is available in a compact 20-QFN (5x5 mm) package. The operating temperature range is -40°C to 85°C.
This device is suited for systems targeting compliance with standards such as EN 300 220 and FCC CFR47 part 15. Applications include narrowband low power UHF wireless data transmitters, TPMS, AMR, wireless alarm and security systems, home automation, and low power telemetry.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.74 | $3.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum TX power is 10 dBm.
The maximum data rate is 153.6 kBaud.
The operating frequency bands are 402-470 MHz and 804-940 MHz.
The CC1070RSQR operates with a supply voltage between 2.3V and 3.6V.
It supports 2(G)FSK, ASK, and OOK modulation schemes.
The operating temperature range is -40°C to 85°C.
The CC1070RSQR is available in a 20-QFN (5x5 mm) package.
