| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,908 pcs
|
13908 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,511 pcs
|
5511 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,173 pcs
|
1173 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
940 pcs
|
940 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Type | |
| Voltage |
The Texas Instruments CC1020RSSR is a true single-chip UHF RF transceiver designed for very low-power and very low-voltage wireless applications. It supports FSK, GFSK, and OOK modulation and operates in the 402 MHz to 470 MHz and 804 MHz to 930 MHz frequency ranges.
Key electrical specifications include a high sensitivity of up to -118 dBm, a programmable output power of 10 dBm, and a low operating current of 19.9 mA in RX mode. The device supports a maximum data rate of 153.6 kBaud and operates from a supply voltage of 2.3 V to 3.6 V. It features integrated bit synchronization and requires very few external components.

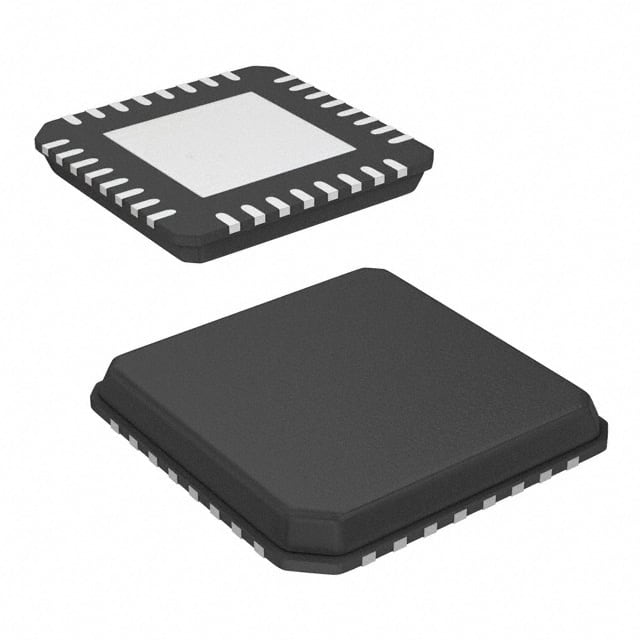

This transceiver is housed in a 32-VQFN exposed pad package, suitable for surface mount applications. The operating temperature range is -40°C to 85°C. It is designed for systems targeting compliance with standards such as EN 300 220 and FCC CFR47 Part 15.
The CC1020RSSR is well-suited for various wireless applications requiring low power consumption and reliable communication in the Sub-1 GHz ISM bands.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.84 | $5.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CC1020RSSR operates in the 402 MHz to 470 MHz and 804 MHz to 960 MHz frequency ranges.
The maximum data rate supported by the CC1020RSSR is 153.6 kBaud.
The CC1020RSSR has a sensitivity of up to -118 dBm.
The CC1020RSSR operates with a supply voltage range of 2.3 V to 3.6 V.
The CC1020RSSR can operate in temperatures ranging from -40°C to 85°C.
The CC1020RSSR is available in a 32-VQFN exposed pad package.
