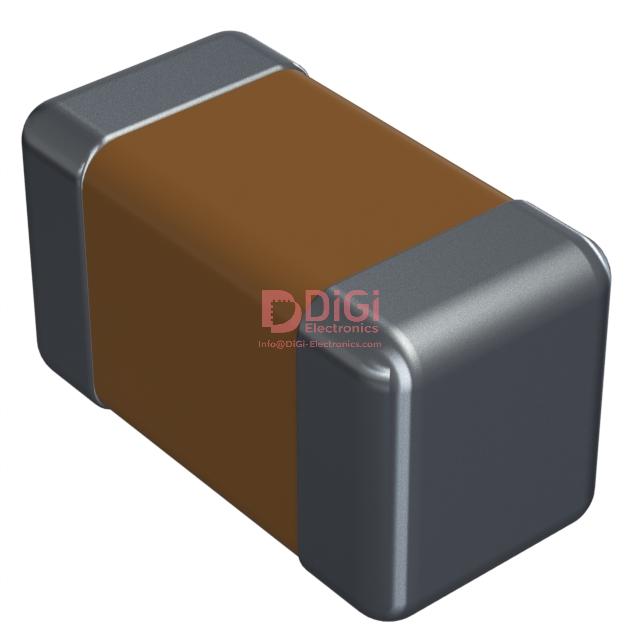

CC0603JRX7R9BB821 The Kyocera AVX CC0603JRX7R9BB821 is a ceramic capacitor with 820pF capacitance and a 50V rating. It features a C0G/NP0 temperature coefficient and a ±10% tolerance.
Mfr Part #:

CC0603JRX7R9BB821

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
The Kyocera AVX CC0603JRX7R9BB821 is a ceramic capacitor with 820pF capacitance and a 50V rating. It features a C0G/NP0 temperature coefficient and a ±10% tolerance.
✓ Total Stock: 36,000 pcs
$ Price Range: $0.10

CC0603JRX7R9BB821 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
36,000 pcs
On Request
36000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CC0603JRX7R9BB821 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Lead Style
Mounting Type
Operating Temperature
SVHC Present
Temperature Coefficient
Thickness (Max)
Tolerance
View Similar Products (0)

CC0603JRX7R9BB821 Description

Short technical summary and product information.

This Kyocera AVX CC0603JRX7R9BB821 is a surface mount ceramic capacitor designed for general purpose applications. It offers a capacitance of 820 pF with a tight tolerance of ±10% and is rated for 50V.



The capacitor utilizes a C0G/NP0 temperature coefficient, ensuring stable performance across its operating temperature range of -55°C to 125°C. Its compact 0603 (1608 Metric) package and surface mount type make it suitable for high-density circuit designs.



The dimensions of the component are 0.063" L x 0.032" W (1.60mm x 0.81mm), with a maximum thickness of 0.035". It is supplied in tape and reel packaging.

CC0603JRX7R9BB821 Quick Information

Product Type: Ceramic Capacitor
Series: KGM - C0G
Canonical Name: Kyocera AVX CC0603JRX7R9BB821 Ceramic Capacitor
Subcategory: MLCC

CC0603JRX7R9BB821 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CC0603JRX7R9BB821 Estimated Pricing

Qty Low High
1+ $0.10 $0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

CC0603JRX7R9BB821 Features

  • Capacitance of 820 pF.
  • Rated for 50V DC operation.
  • Features C0G, NP0 temperature coefficient.
  • Tolerance is ±10%.
  • Surface mount 0603 package.

CC0603JRX7R9BB821 Applications

  • Used in general purpose electronic circuits.
  • Suitable for high-frequency RF filtering.
  • Ideal for decoupling and bypass applications.
  • Common in timing and oscillator circuits.
  • Works in temperature-stable resonant circuits.

CC0603JRX7R9BB821 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the CC0603JRX7R9BB821?

The capacitance is 820 pF.

What is the voltage rating for this ceramic capacitor?

The voltage rating is 50V.

What is the temperature coefficient of the CC0603JRX7R9BB821?

The temperature coefficient is C0G, NP0.

What is the tolerance of this Kyocera AVX capacitor?

The tolerance is ±10%.

What are the operating temperature limits for this component?

The operating temperature range is -55°C to 125°C.

What are the dimensions of the CC0603JRX7R9BB821?

The dimensions are 0.063" L x 0.032" W (1.60mm x 0.81mm).

What type of package is the CC0603JRX7R9BB821 in?

It is in a 0603 (1608 Metric) package.
