| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Case Code | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Voltage - Rated | |
| Width |

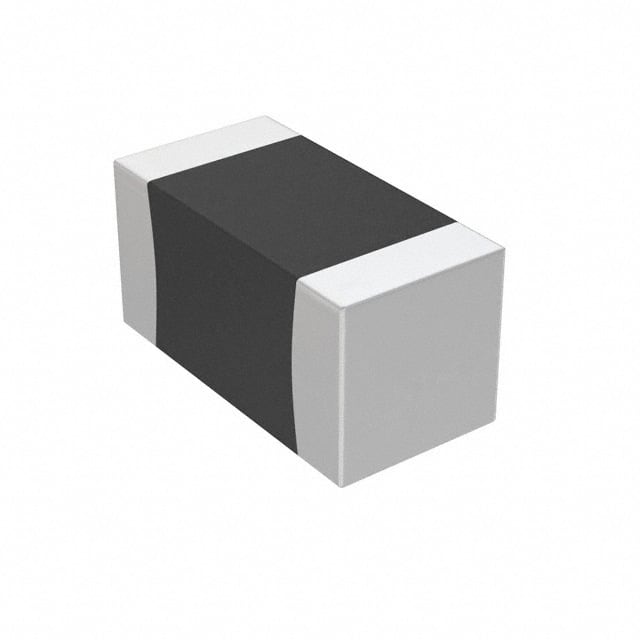

The Yageo CC0402KRX7R7BB104 is a surface-mount multilayer ceramic capacitor (MLCC) with a capacitance of 0.1 µF and a rated voltage of 16V. It features an X7R dielectric, providing a capacitance tolerance of ±10% and an operating temperature range of -55°C to +125°C. The X7R temperature coefficient offers stable capacitance over a wide temperature range, making it suitable for decoupling, filtering, and bypass applications in general-purpose electronics.
This capacitor is packaged in a standard 0402 (1005 Metric) case size, with dimensions of 1.00 mm length, 0.50 mm width, and a maximum thickness of 0.55 mm. The mounting type is surface mount with SMD terminations, compatible with automated assembly processes. The compact 0402 footprint allows for high-density board designs.
Typical applications include power supply decoupling, signal coupling, and timing circuits where stable capacitance over temperature is required. The X7R dielectric is well-suited for bypass and filtering in consumer, industrial, and automotive electronics (within the rated temperature range).
0.1 µF.
16V.
X7R.
±10%.
0402 (1005 Metric).
